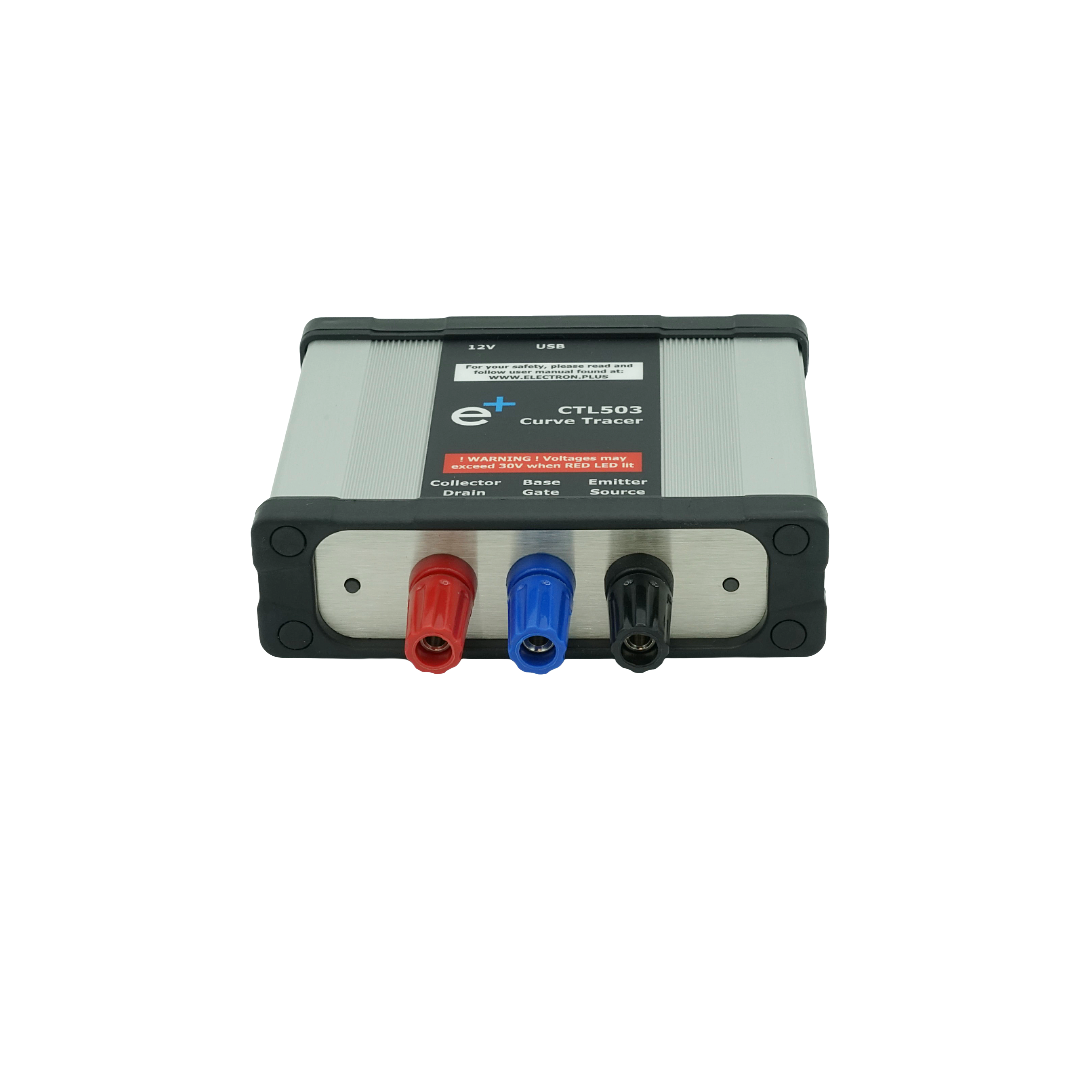

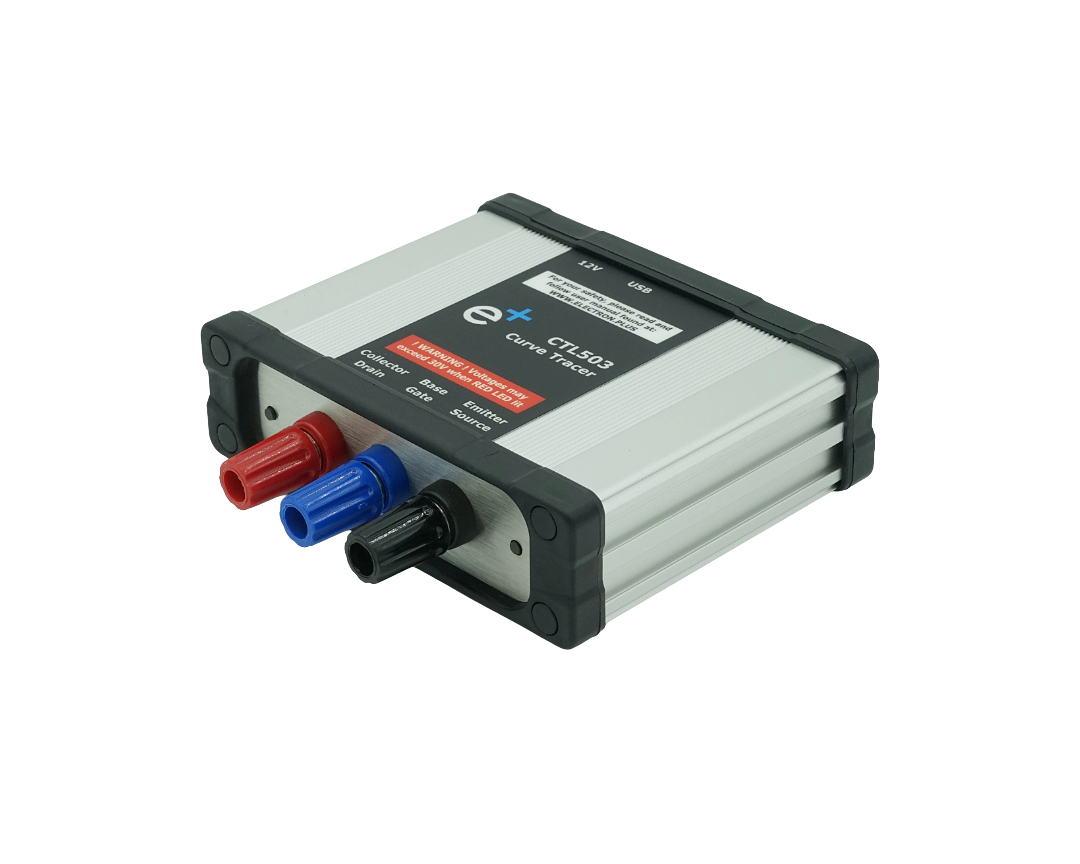

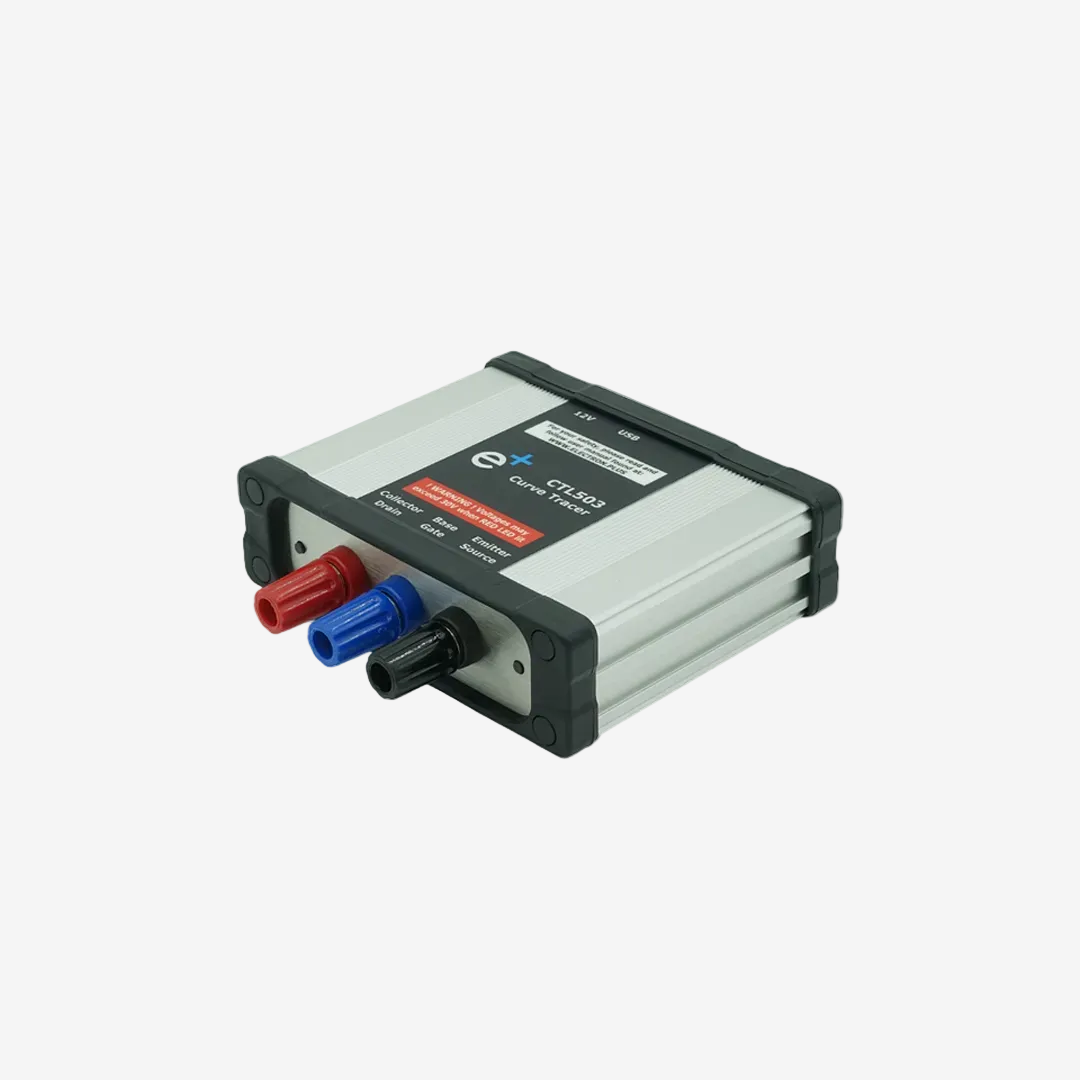

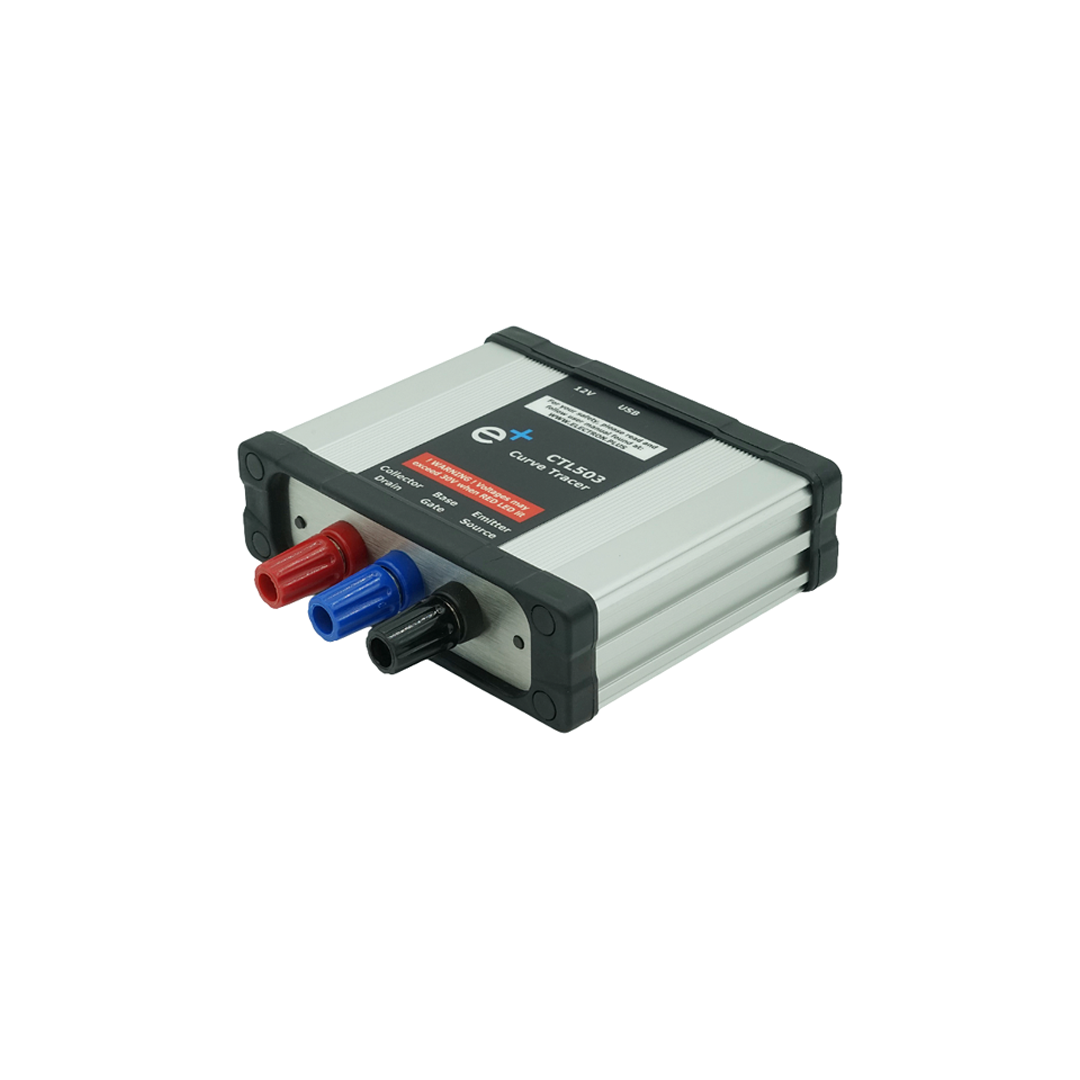

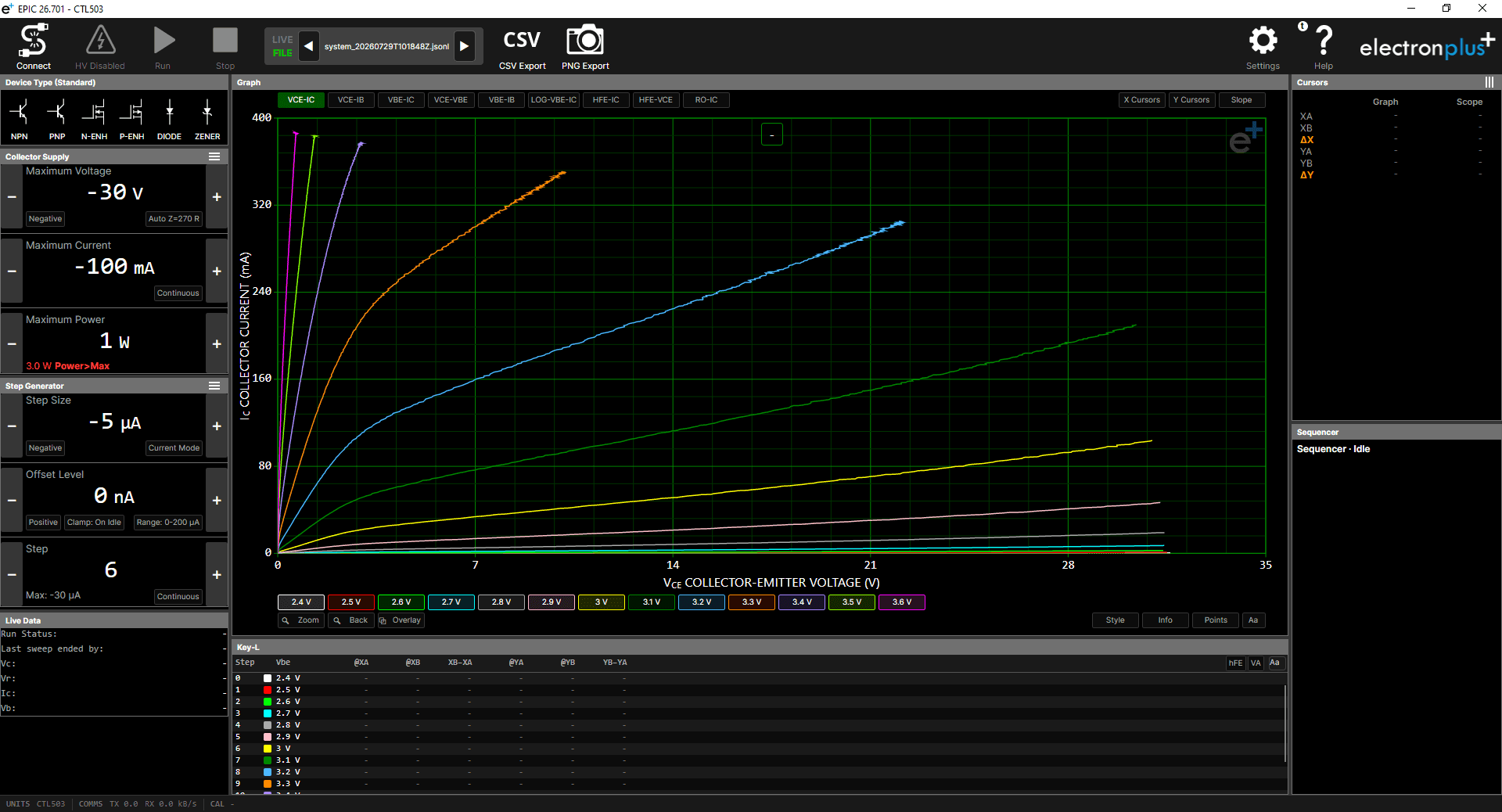

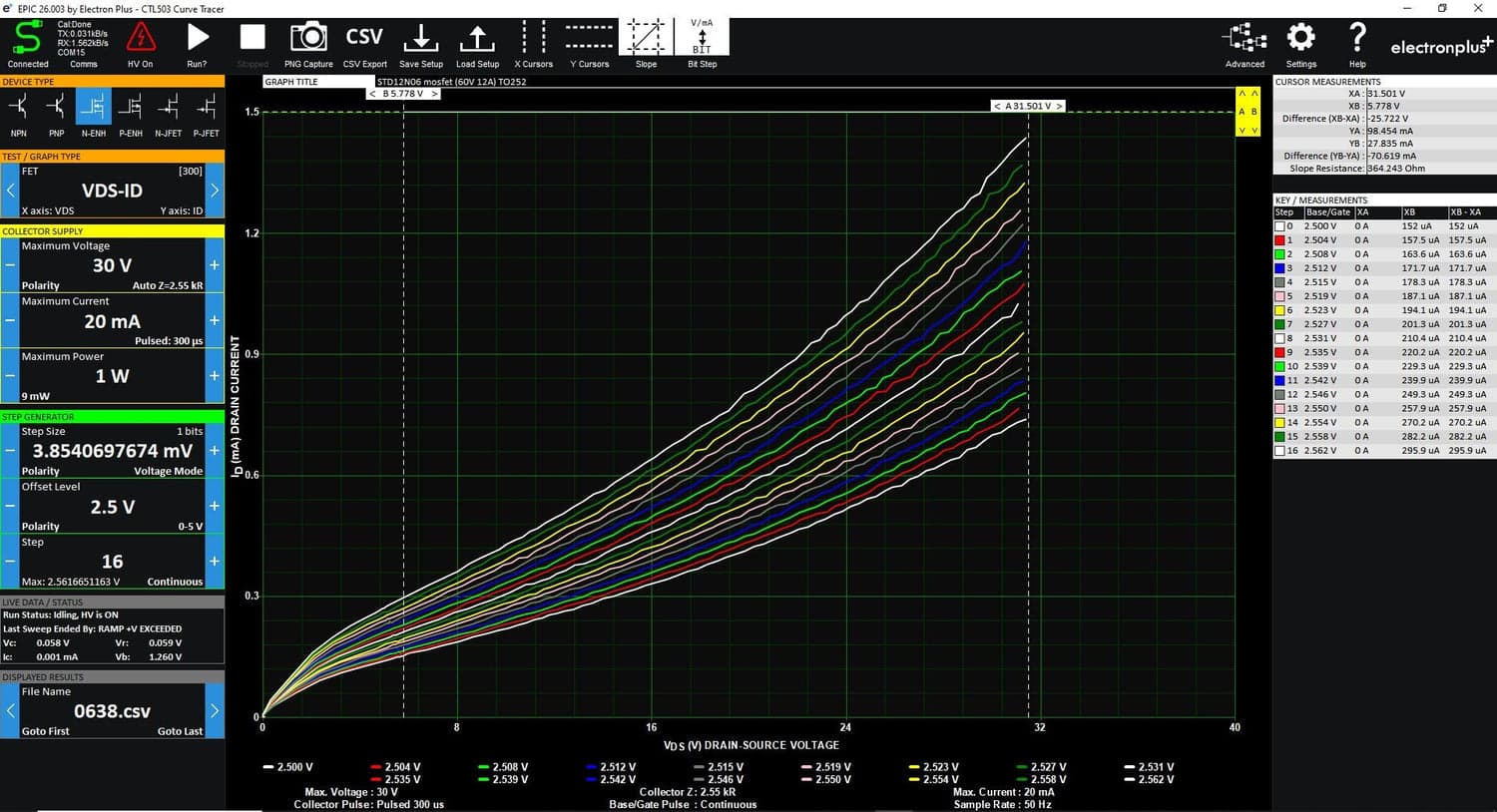

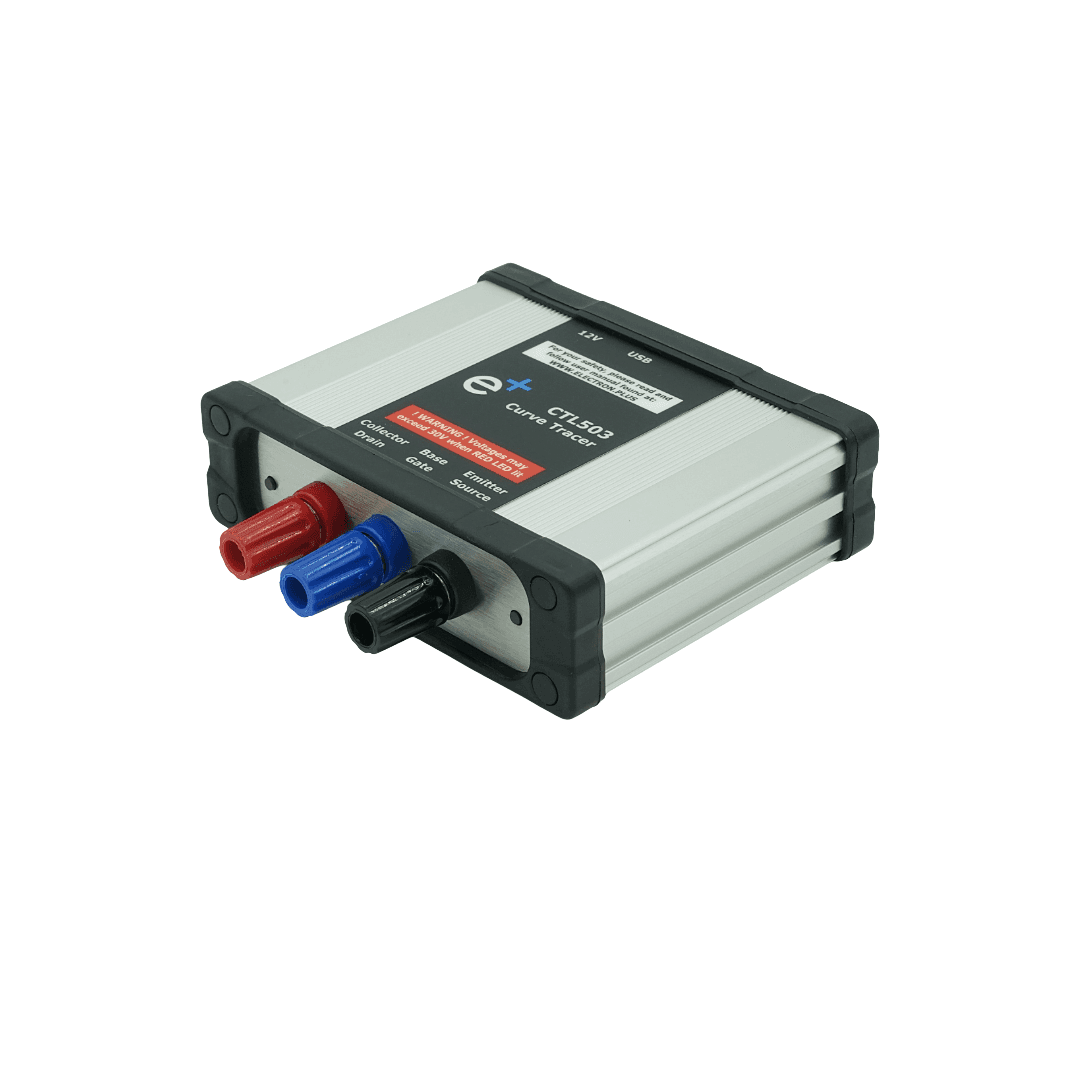

Curve Tracer
The CTL503 curve tracer measures transistor and semiconductor device characteristics at collector/emitter voltages up to 100 V and currents up to 3 A. It supports testing of BJTs, FETs, MOSFETs, and certain other two and three terminal components, enabling acquisition of I–V curves for fault diagnosis and parameter verification.

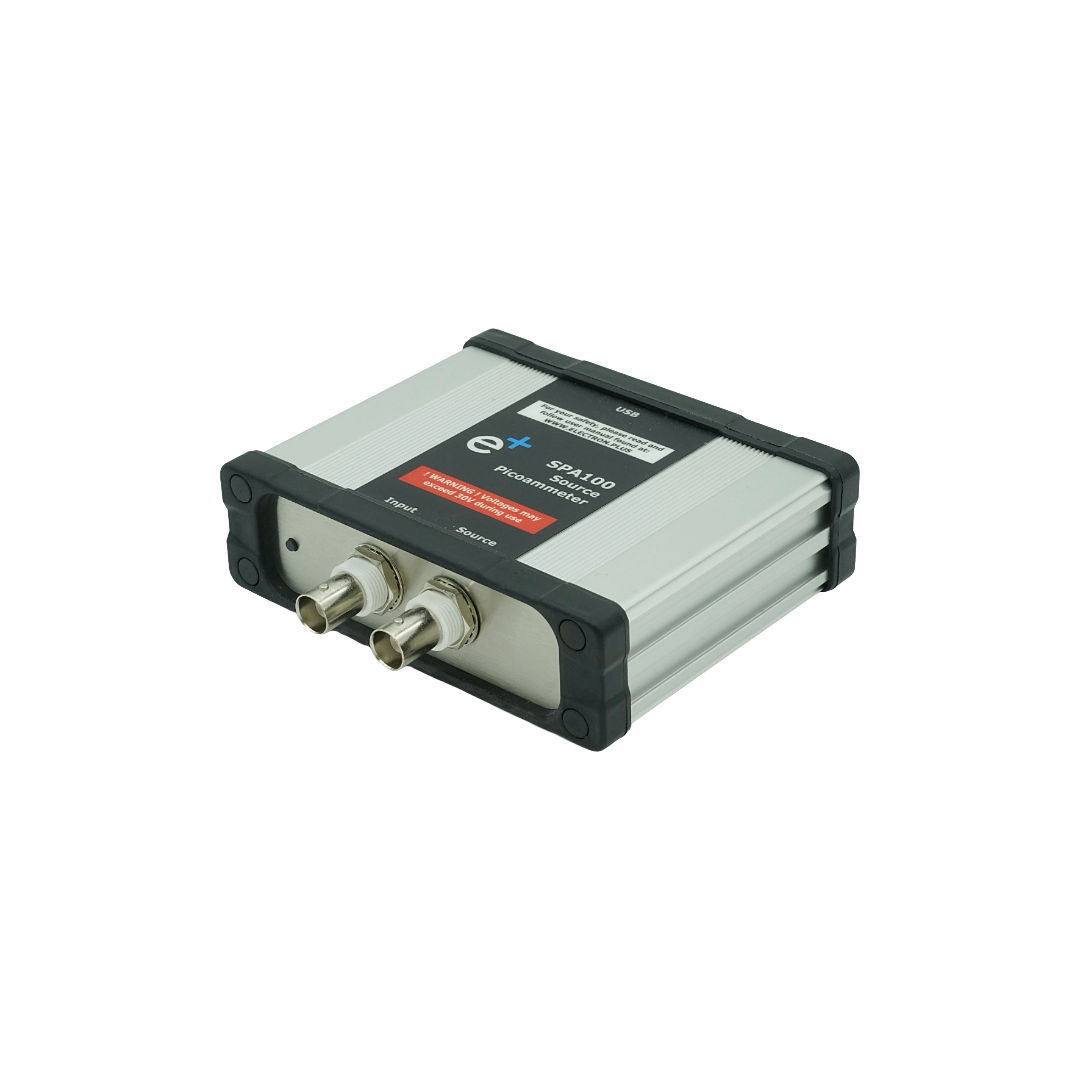

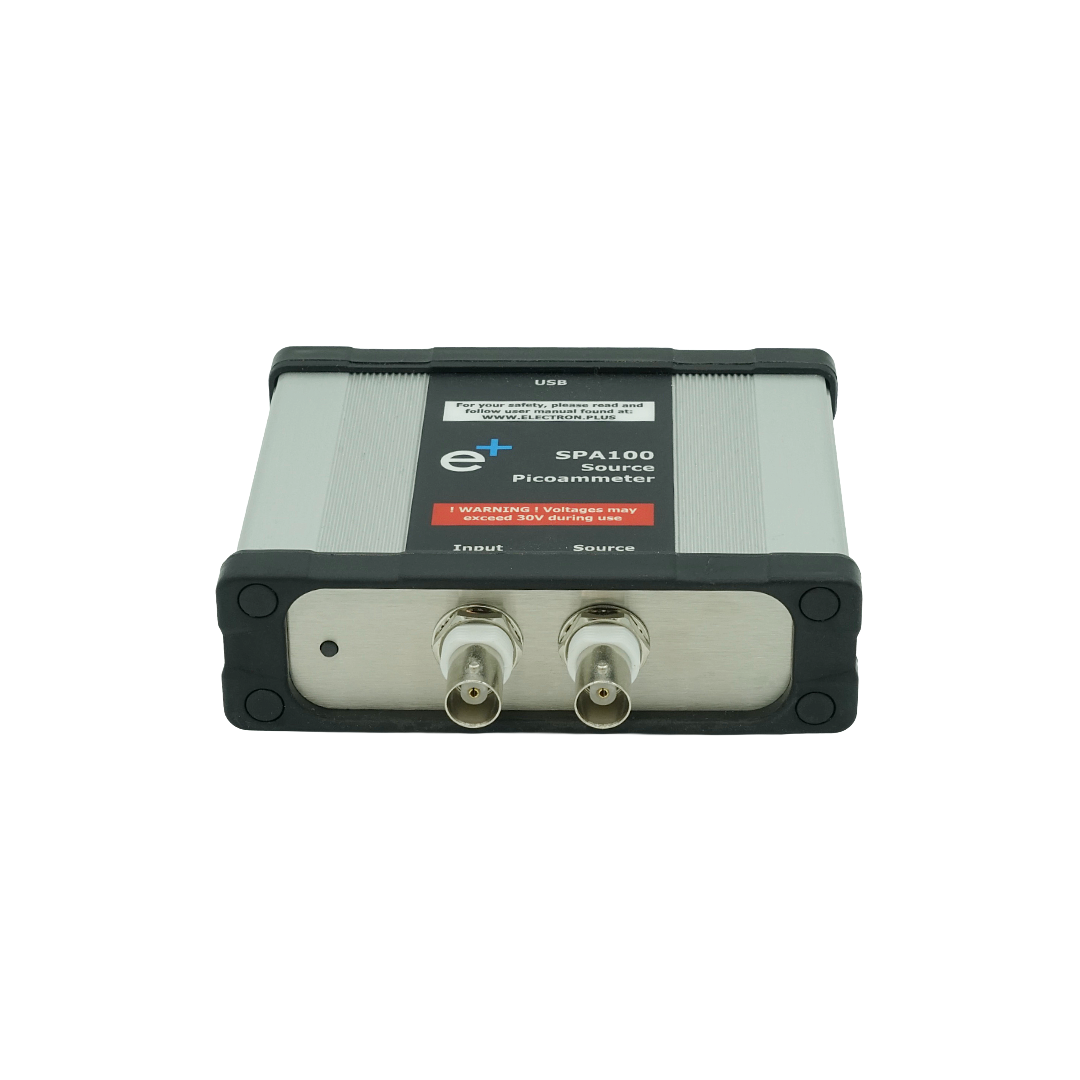

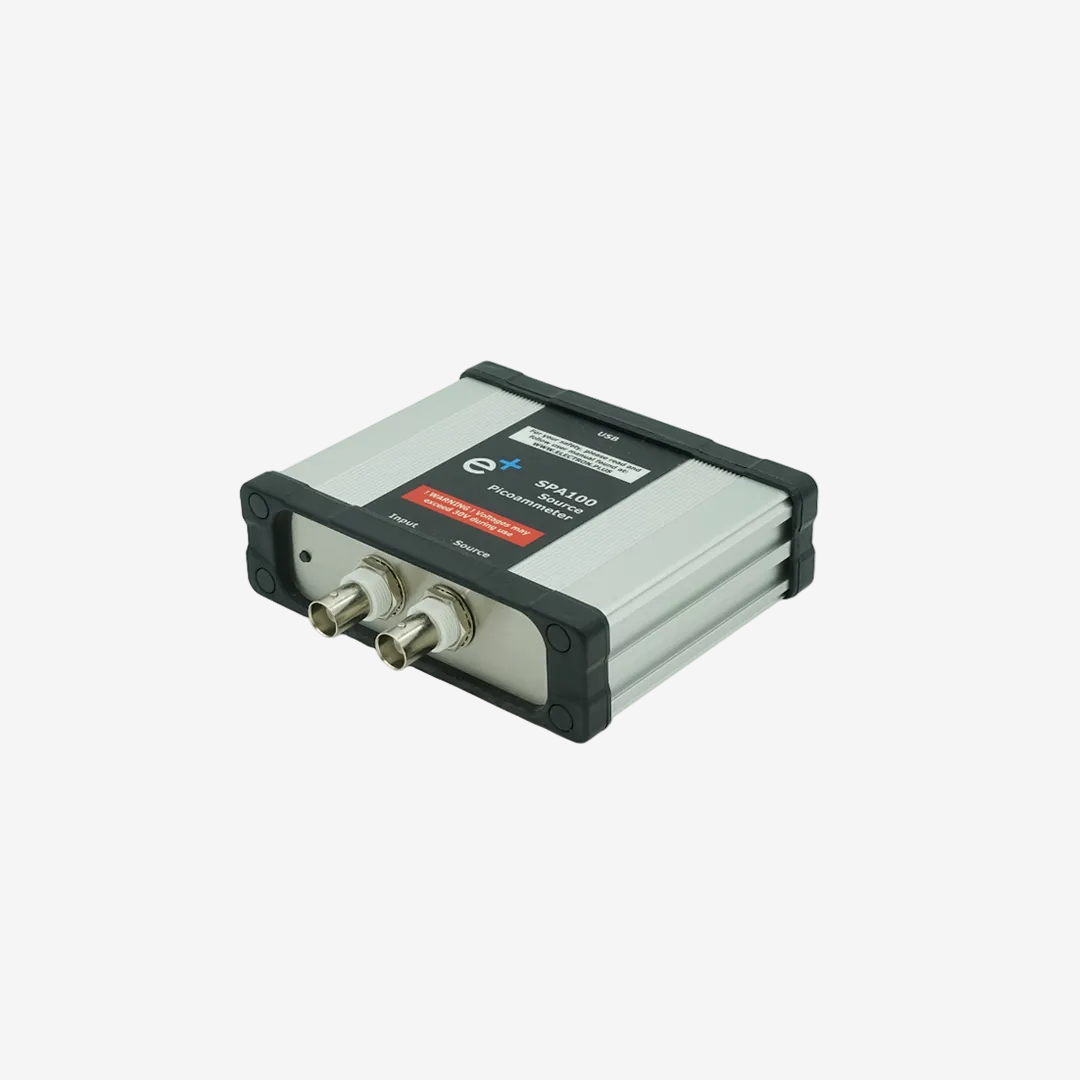

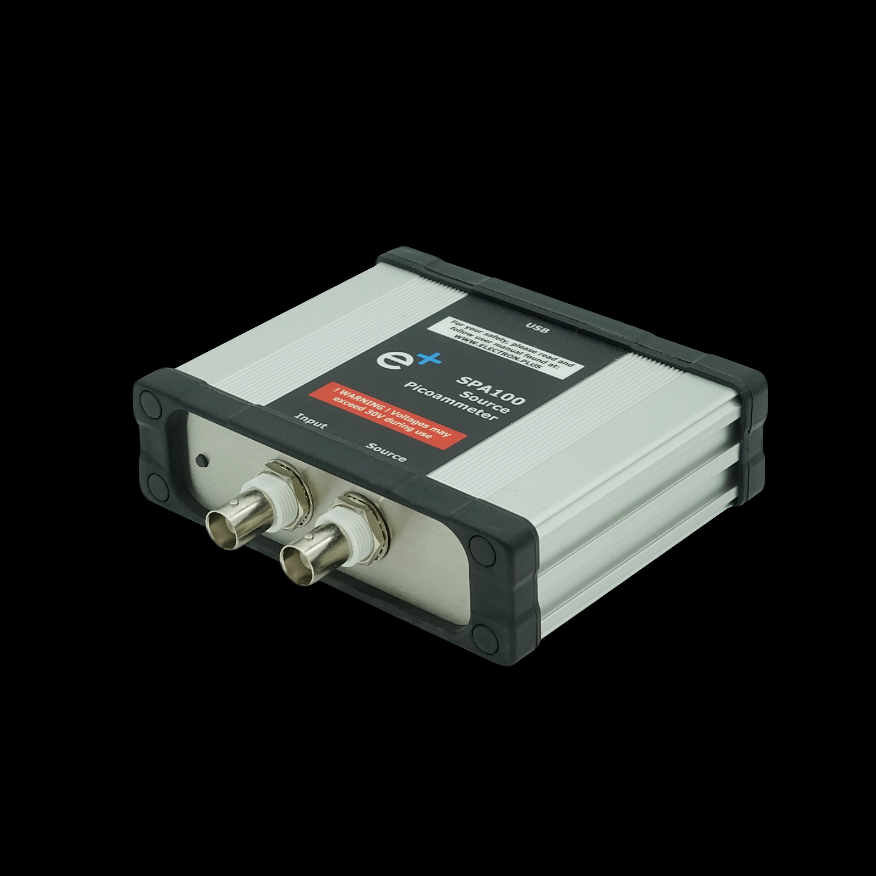

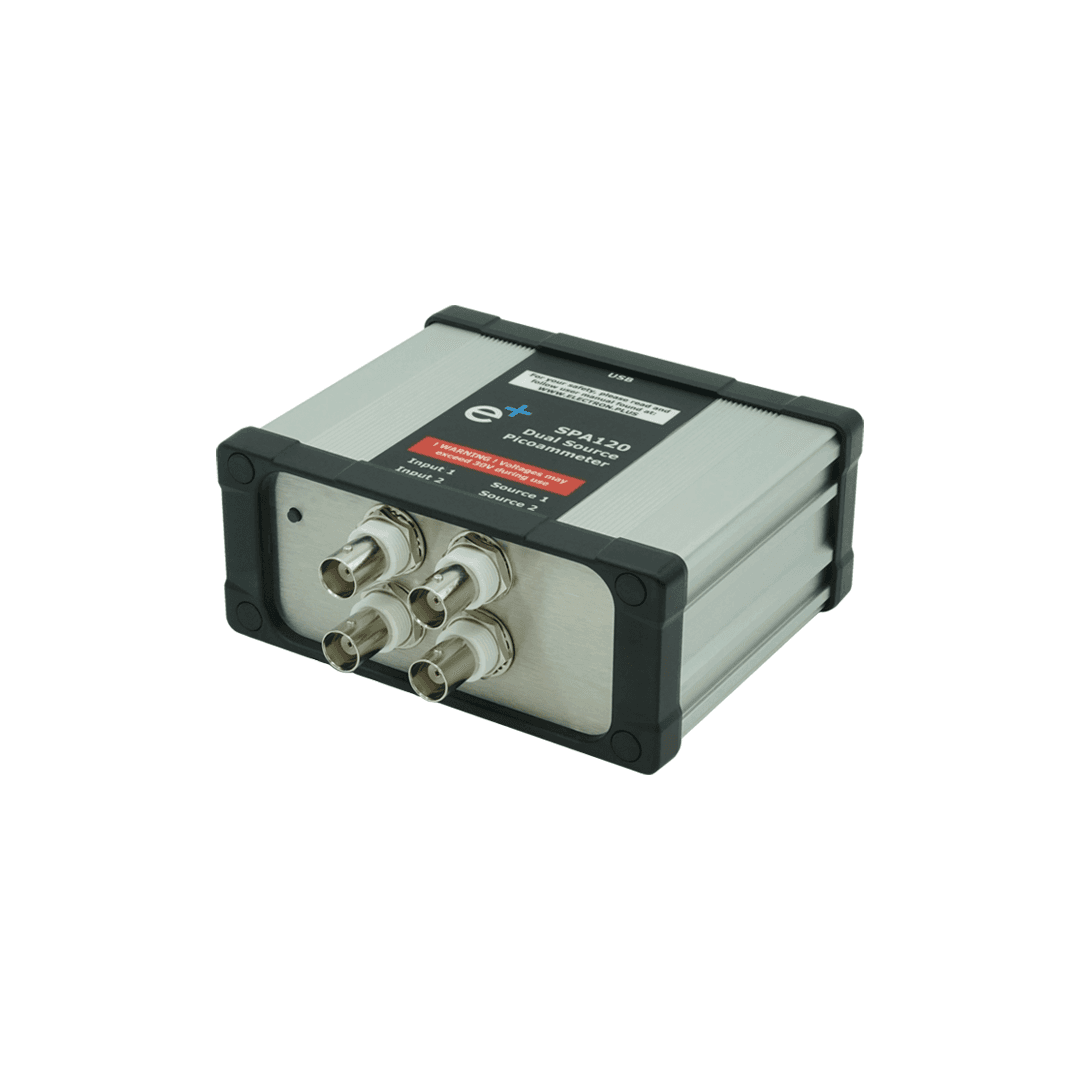

Source Picoammeters
Our single SPA100 and dual channel SPA120 source picoammeters, designed for measuring and logging very small currents down to the pA range - making it the ideal instrument for scientific and research applications, including physics, materials science and electron microscopy.

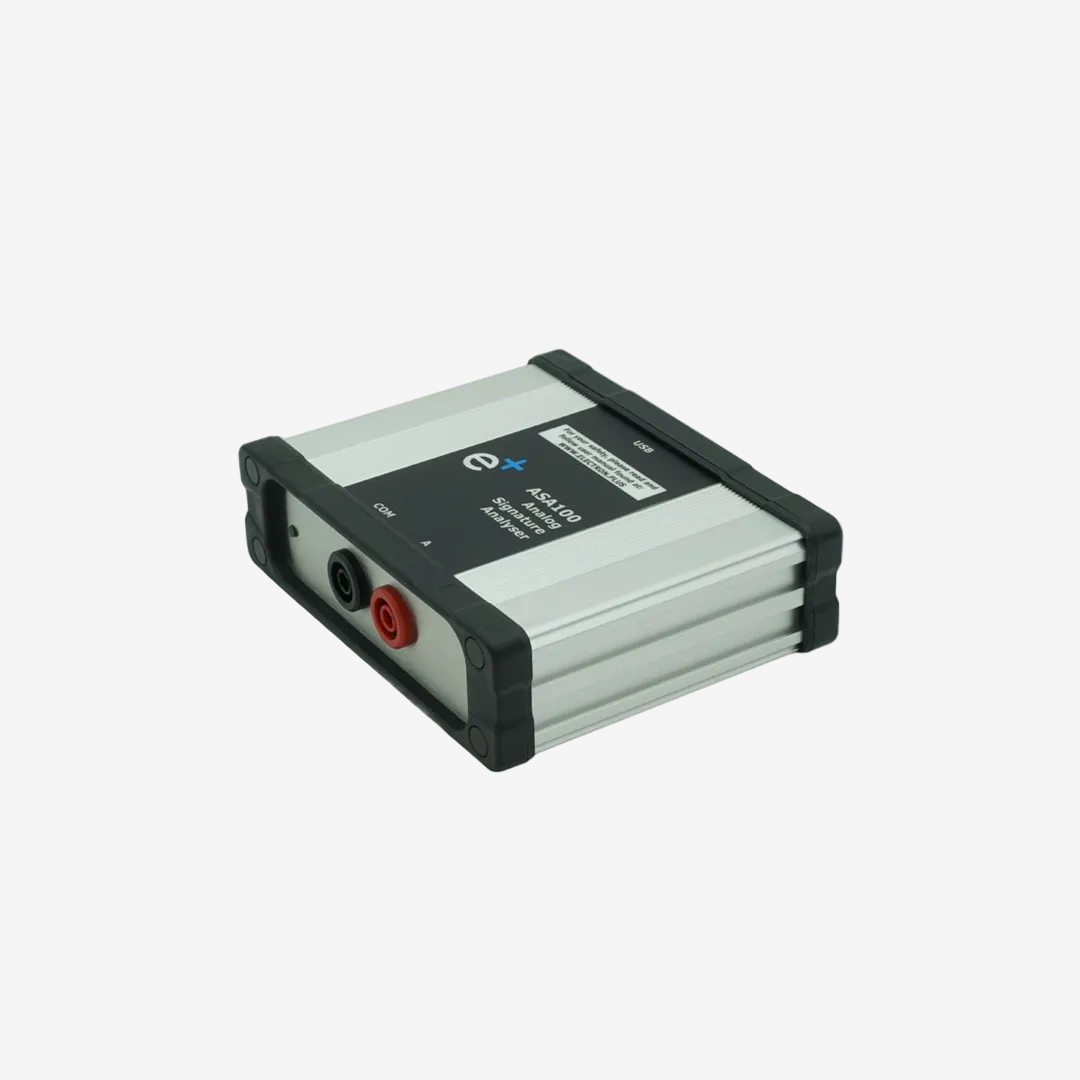

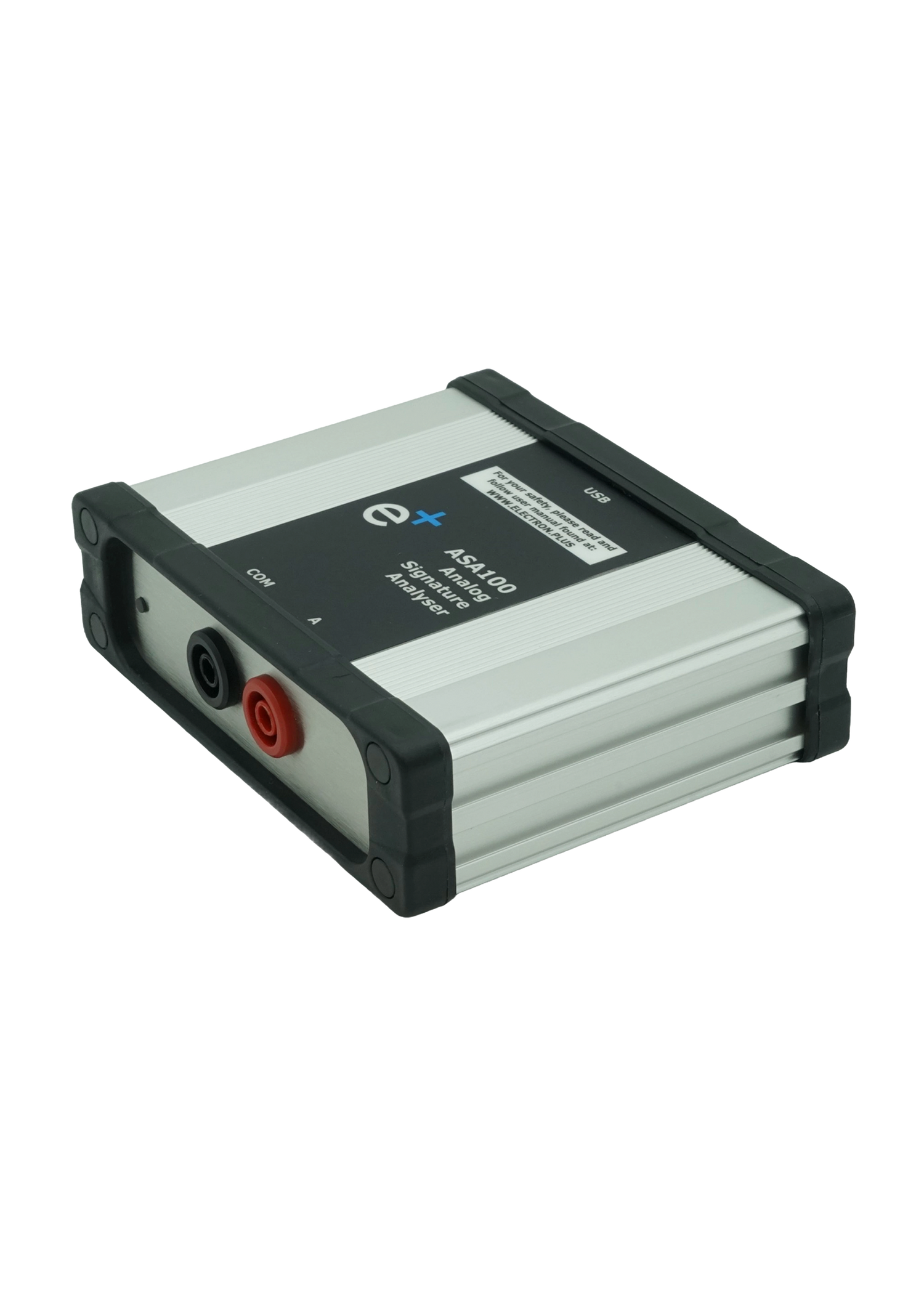

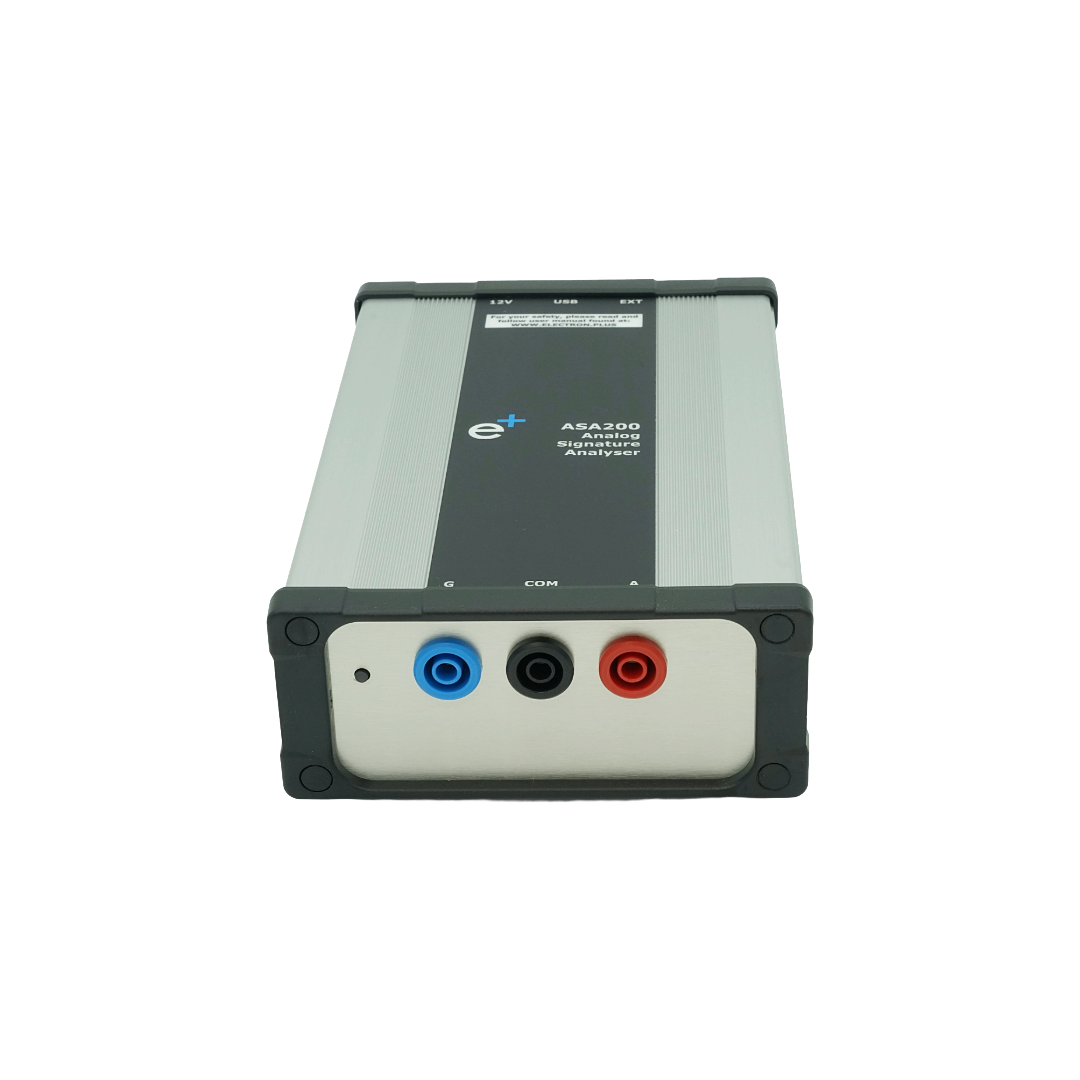

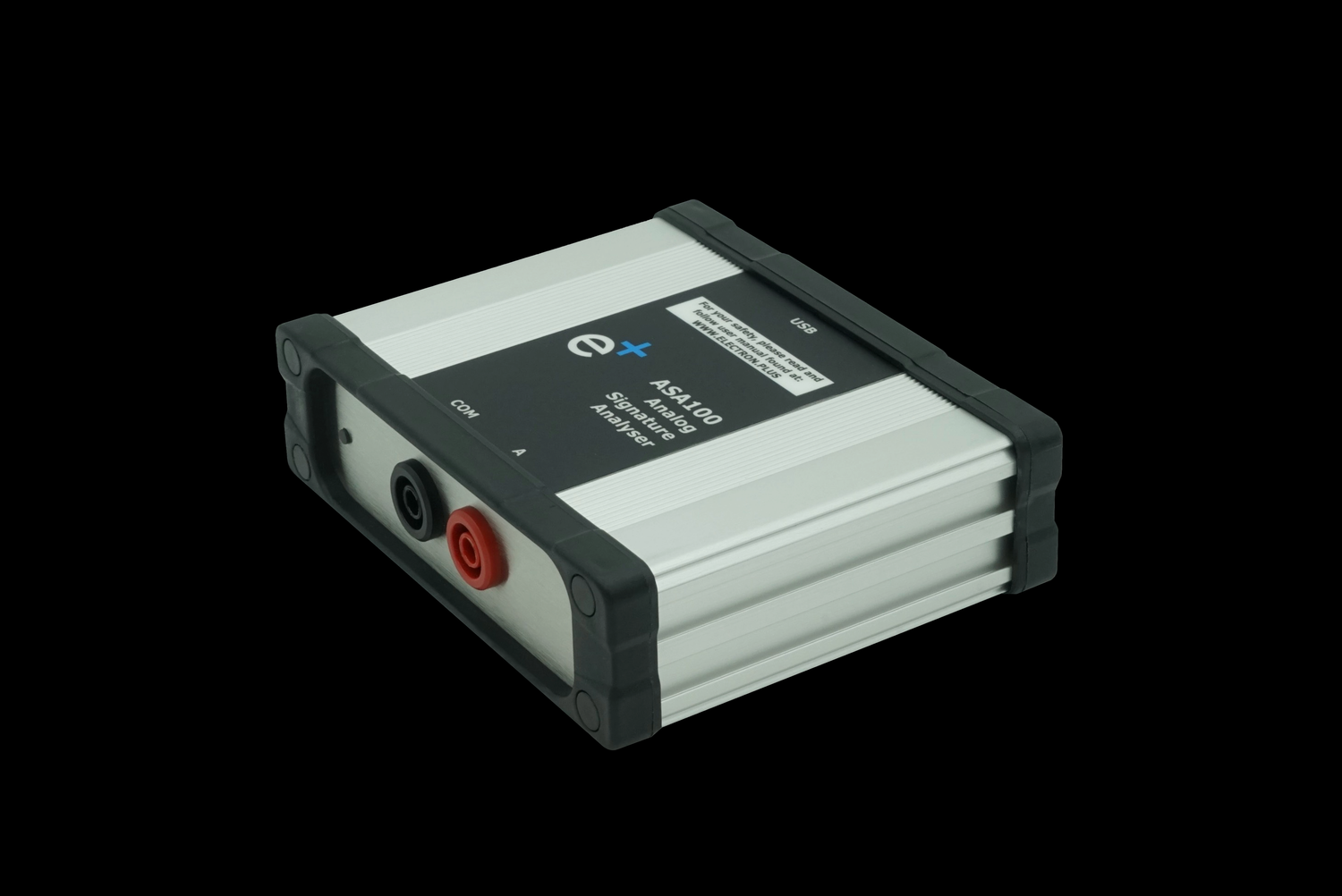

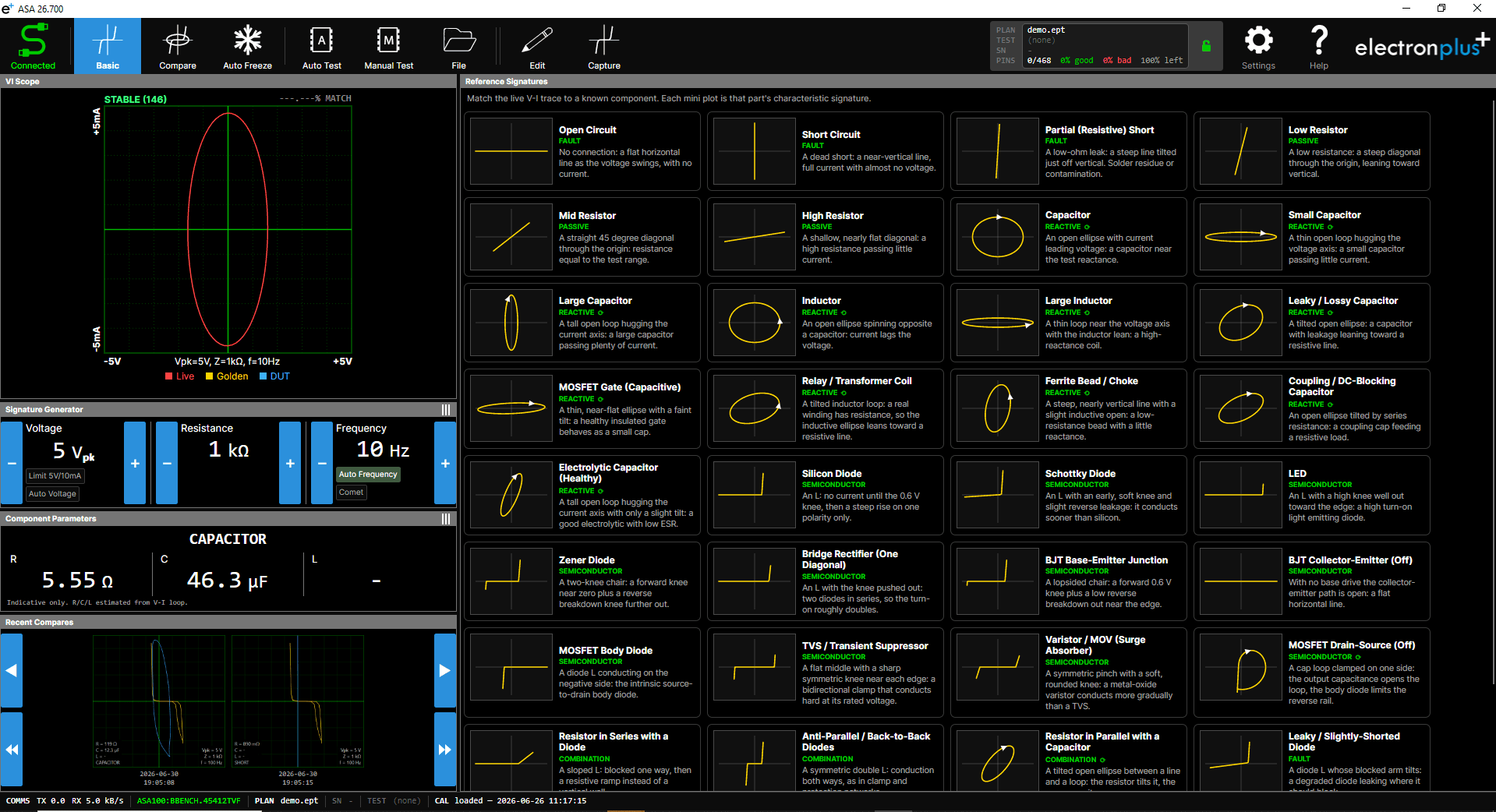

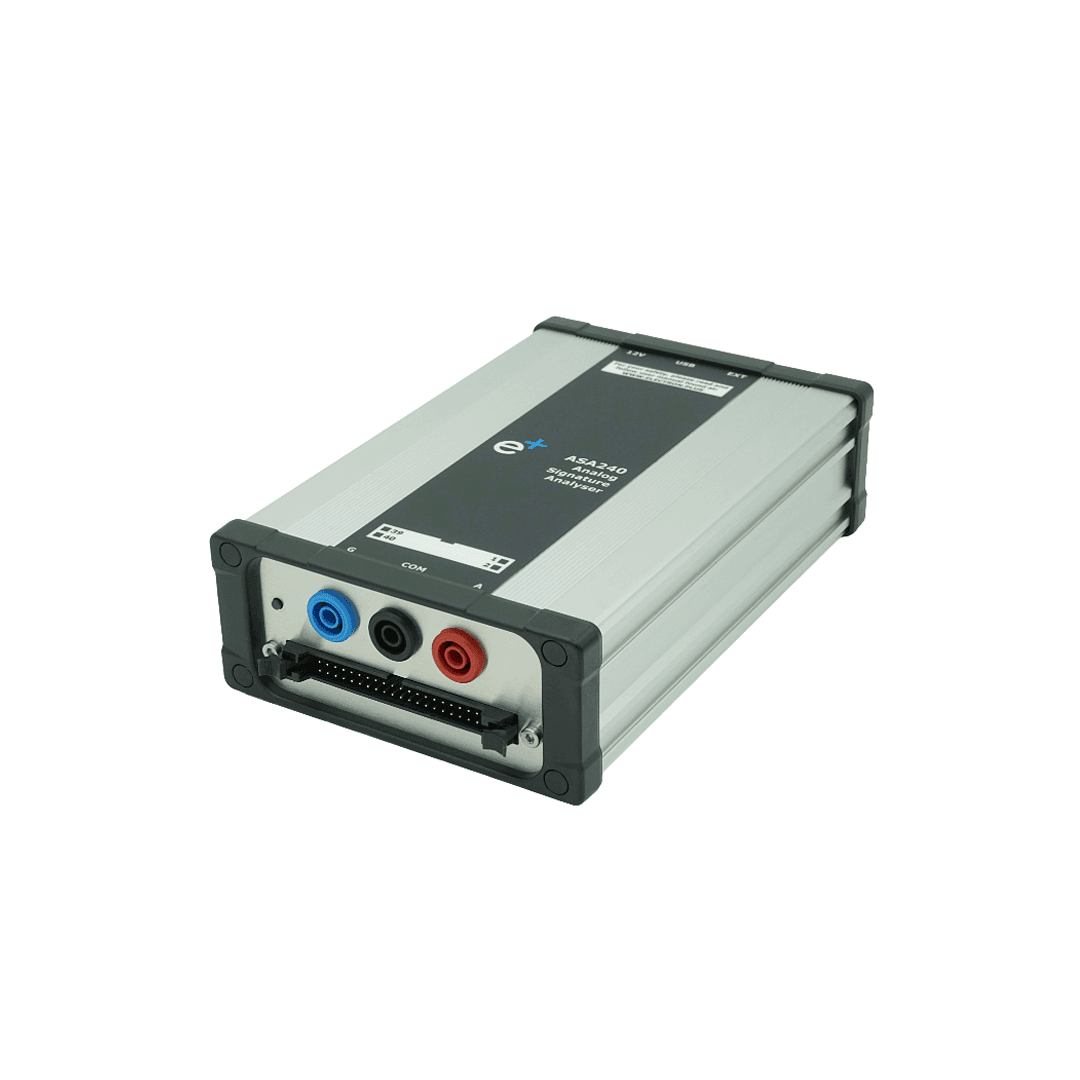

Analog Signature Analysers
Choose from three models ranging from our best seller, the ASA100, to the feature-rich ASA200 with pulse generator and extra resistance ranges or the flagship ASA240 with a built-in 40×2 multiplexer.
Software
Electron Plus software is built to work exclusively with our hardware; it is free to download and use with our products. As with most software, there will be continuous updates to add & fix features.
Updates
-

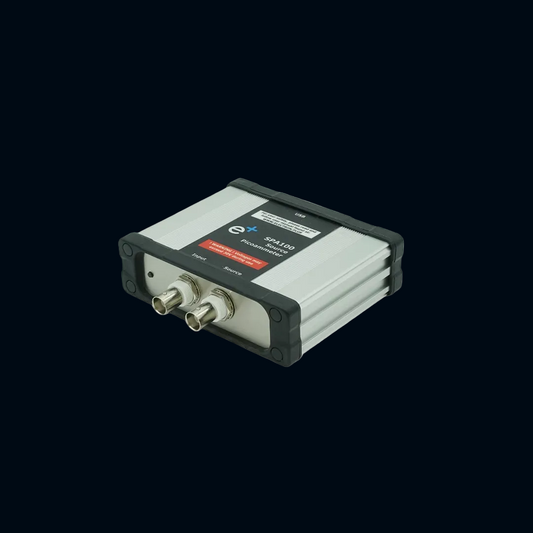

SPA100 interfacing (part 2) - to blinky and bey...
Several SPA100 customers have had issues 'getting to blinky' (in this case, getting a packet of data out of the SPA100) with their own software - In most cases this...
SPA100 interfacing (part 2) - to blinky and bey...
Several SPA100 customers have had issues 'getting to blinky' (in this case, getting a packet of data out of the SPA100) with their own software - In most cases this...
-
CTL 25 is here
CTL software version 25 is here Version 25 has a number of changes and improvements under-the-hood as well as extra functionality, bug-fixes and cosmetic improvements. Main differences you'll notice over...
CTL 25 is here
CTL software version 25 is here Version 25 has a number of changes and improvements under-the-hood as well as extra functionality, bug-fixes and cosmetic improvements. Main differences you'll notice over...
-
SPA100 interfacing (part 1)
Someone somewhere once said "Never complain, never explain" and so the fascinating history behind the SPA100 protocol, choice of comms IC and calibration data will have to wait for another...
SPA100 interfacing (part 1)
Someone somewhere once said "Never complain, never explain" and so the fascinating history behind the SPA100 protocol, choice of comms IC and calibration data will have to wait for another...
Documentation
Access the most current versions of the product documentation in PDF format.
