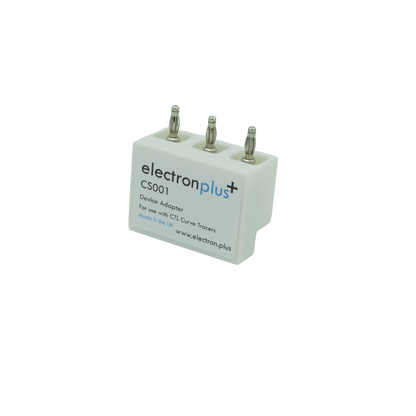

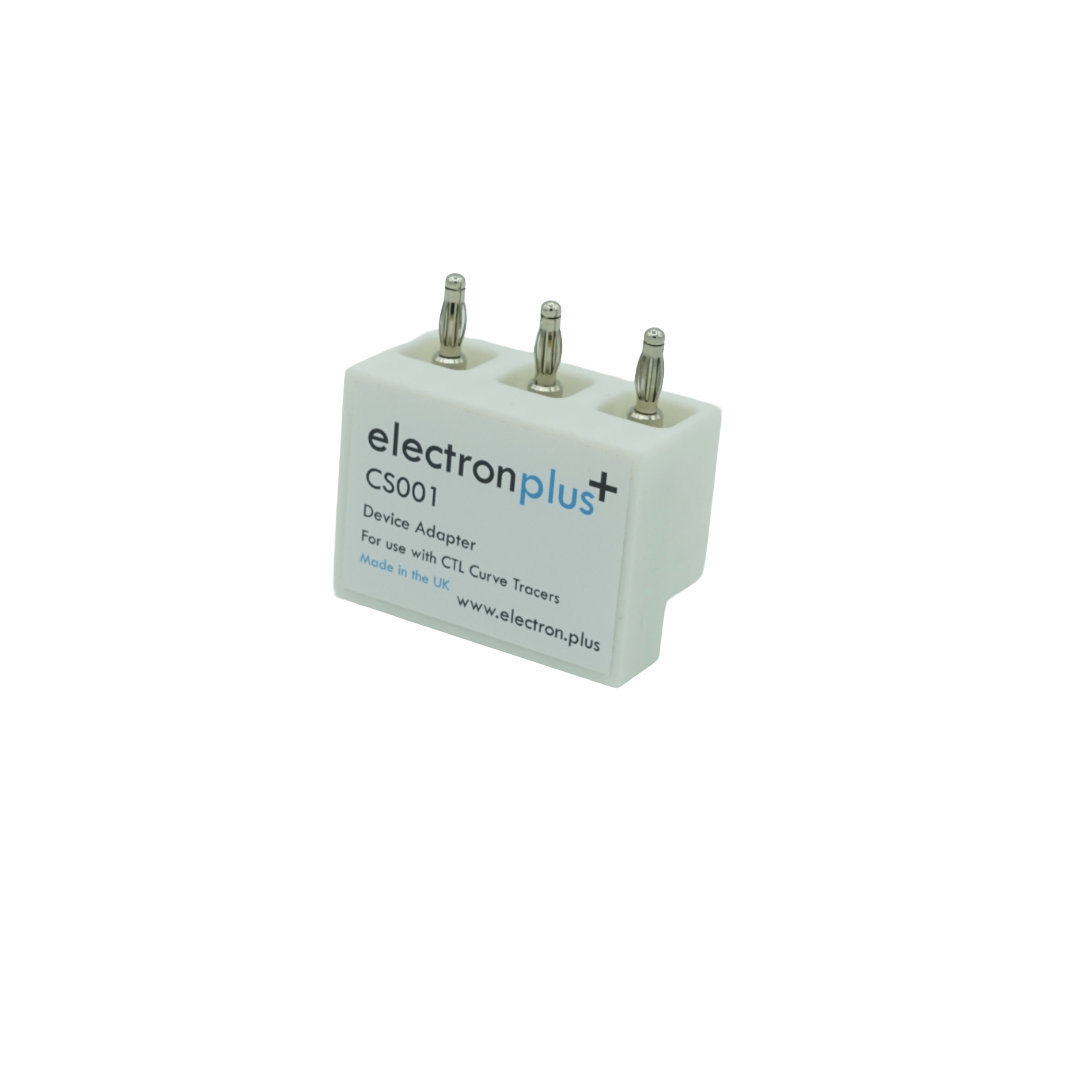

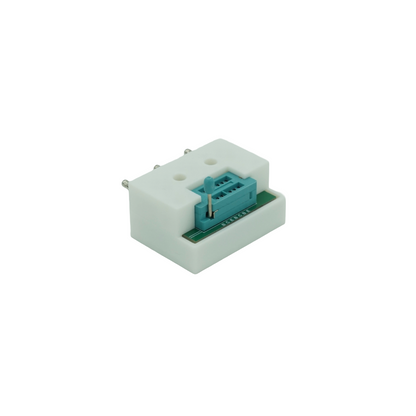

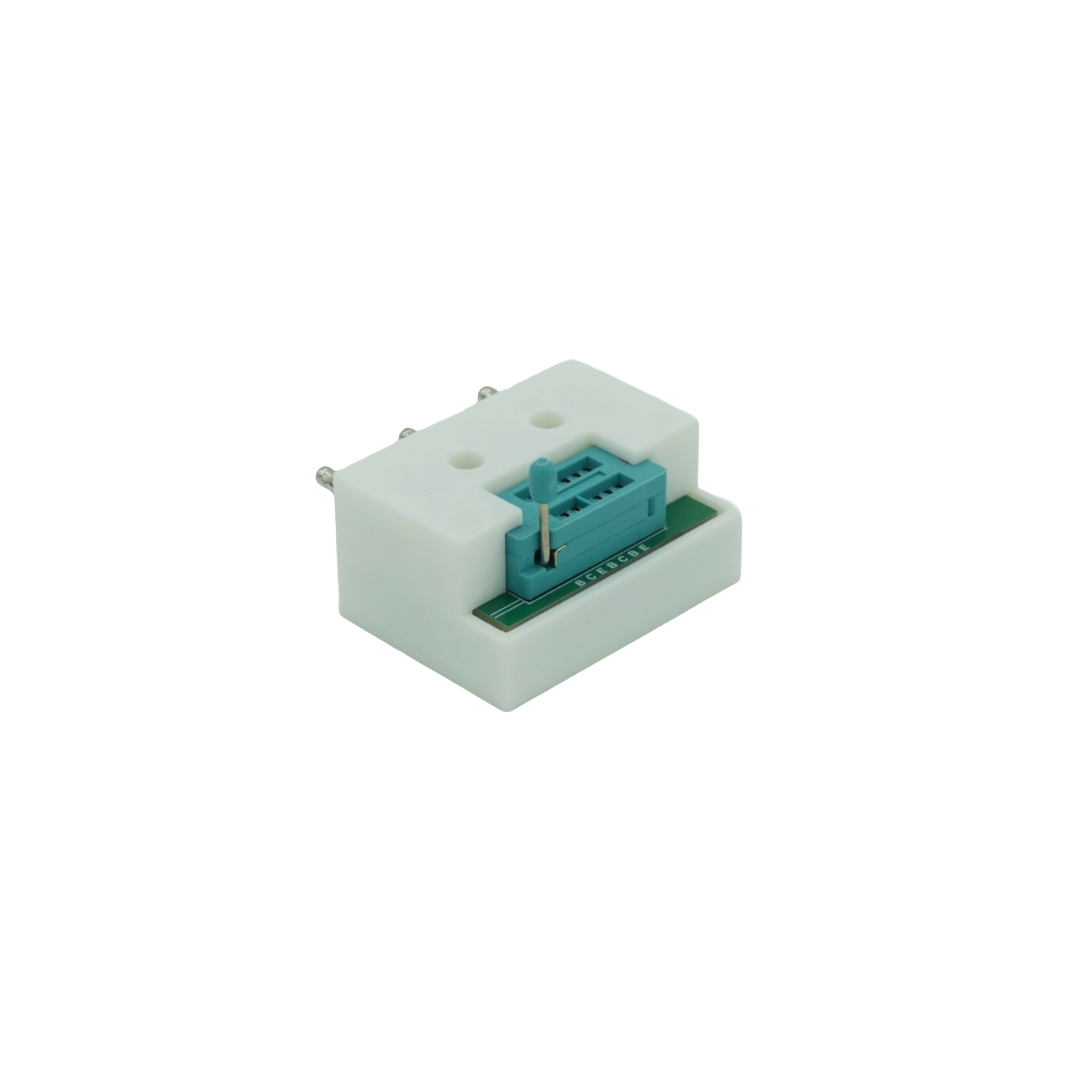

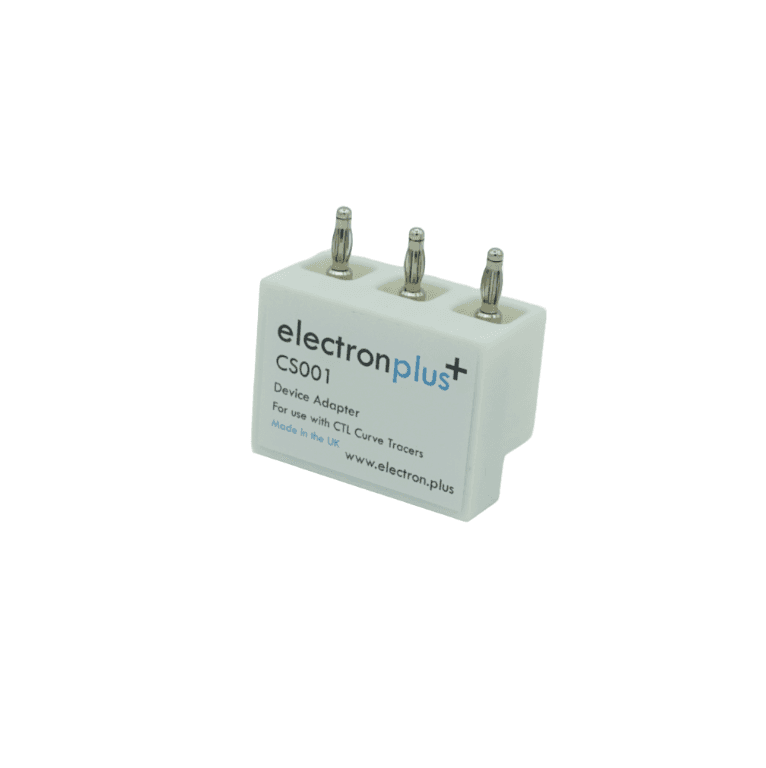

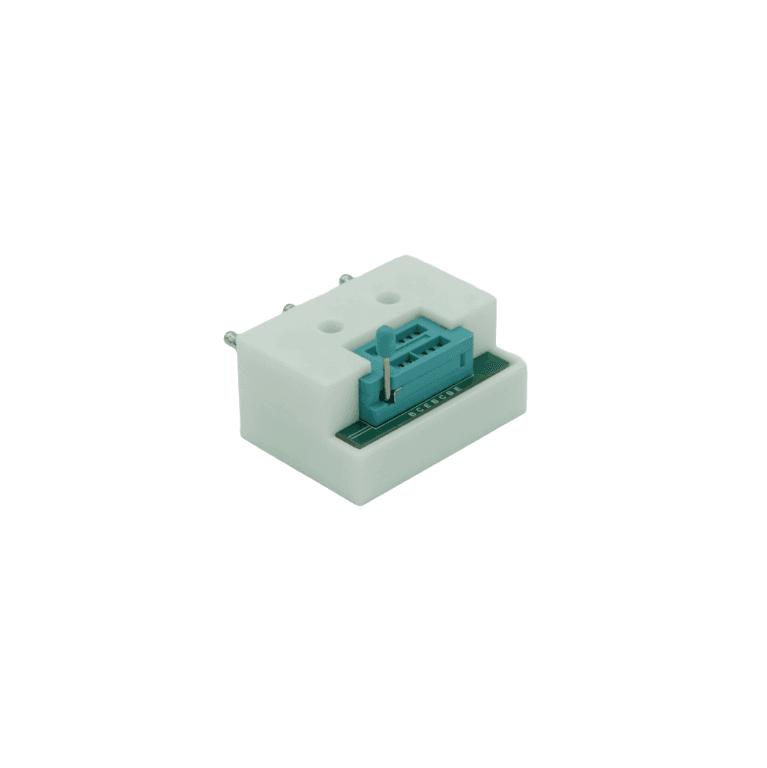

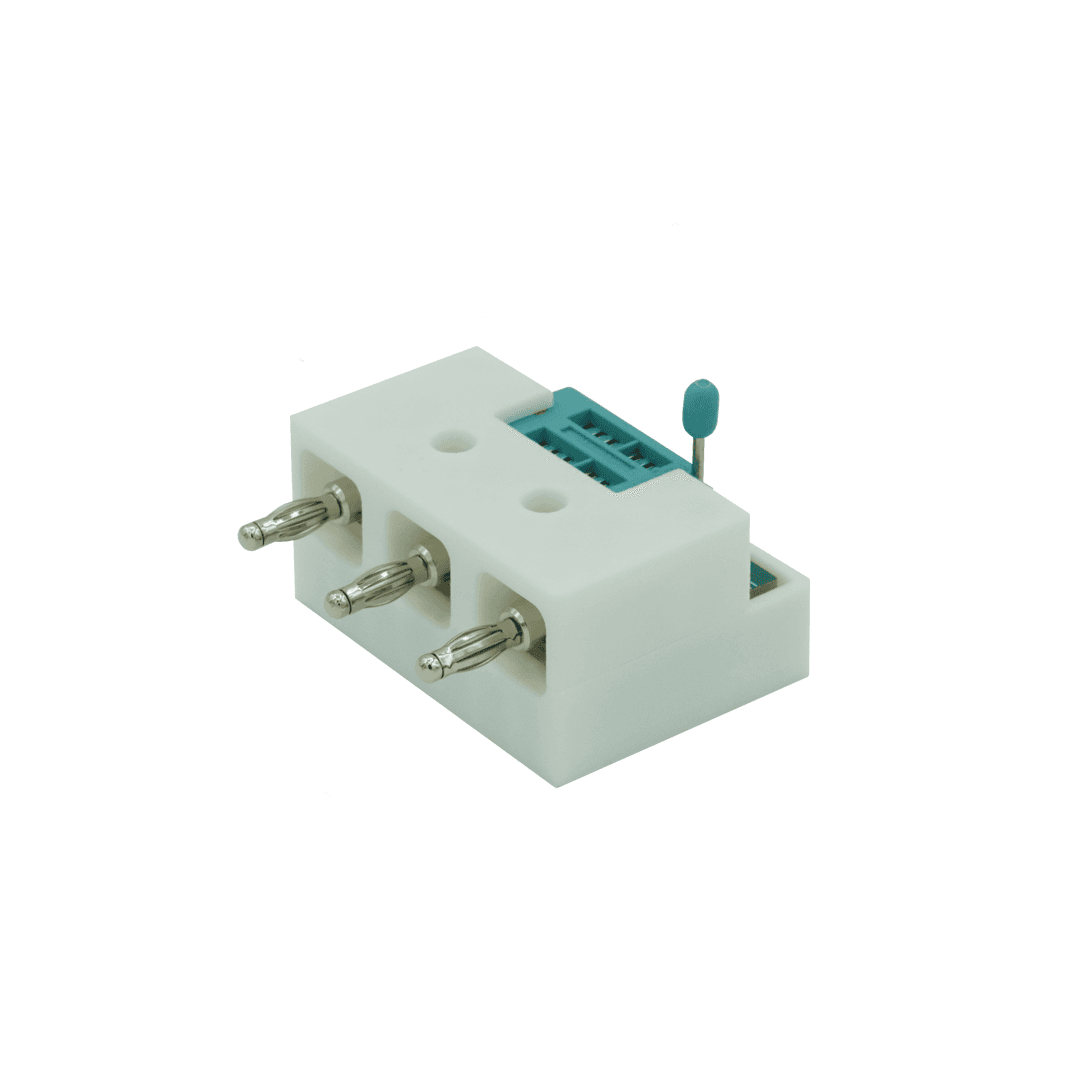

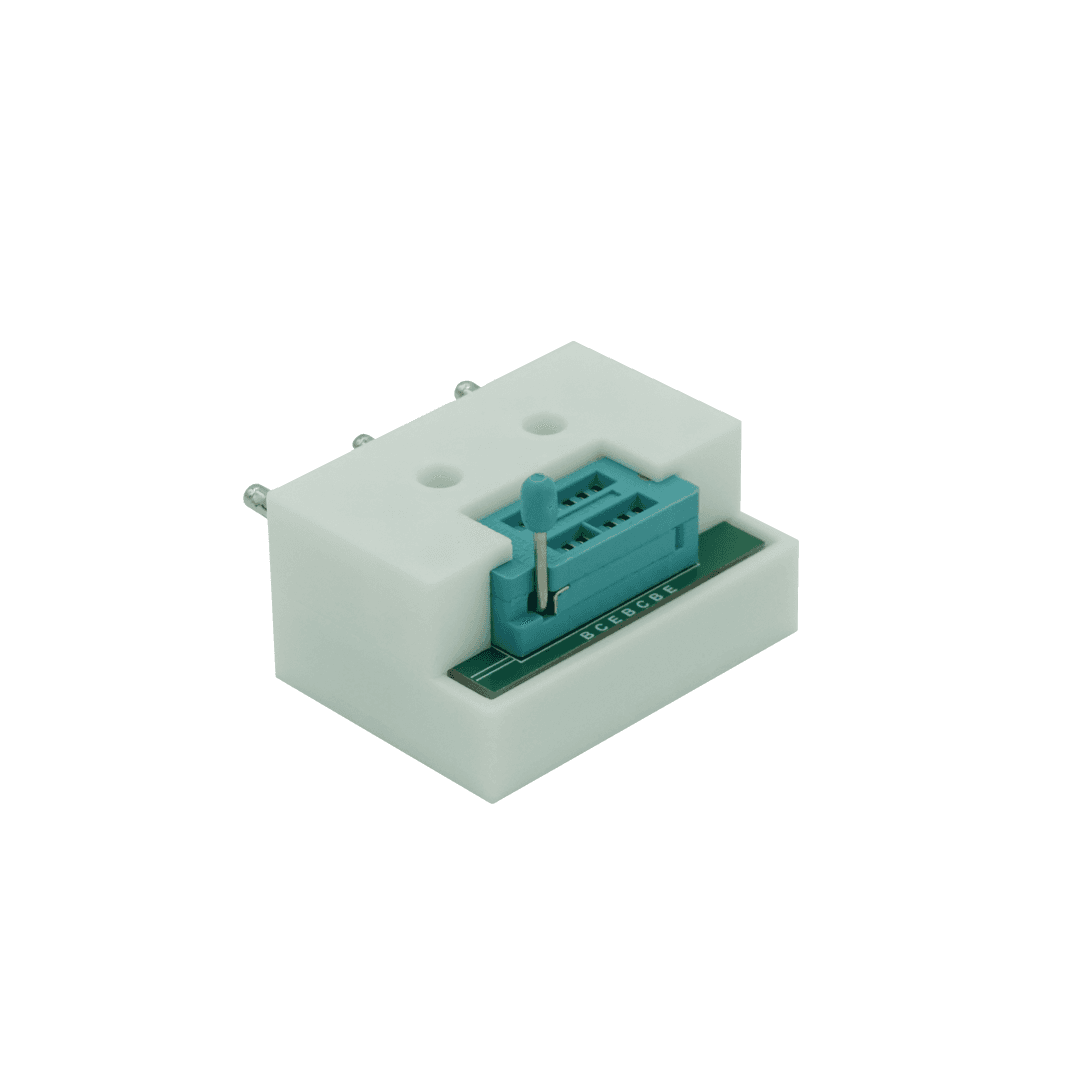

CS001 ZIF Transistor Adapter
ZIF transistor adapter for the CTL503 Curve Tracer.
- Compatible withCTL503 Curve Tracer
- ConnectionZIF socket
- Weight50 g
£22.00ex. VAT
£26.40 inc. VAT
UK: In stockUS: More stock soon
Overview
A ZIF (zero insertion force) socket adapter for the CTL503 Curve Tracer. Connect transistors quickly and securely without the insertion/removal stress of traditional sockets — ideal for matching, characterisation and classroom demos.
Ideal for
Repeatable through-hole transistor connection to the CTL503.
Key features
- Zero-insertion-force transistor adapter
- For use with the CTL503 Curve Tracer
Applications
Through-hole device test
Hold a through-hole transistor in the ZIF socket while the CTL503 records its characteristic curves.
Full specifications
Compatibility
Instrument
CTL503 Curve Tracer
Physical
Weight
50 g
Description
Type
ZIF (zero insertion force) transistor socket adapter
Ordering
SKU
CS001
HS code
9030.20.1000
Downloads
1 downloadCS001 ZIF Transistor Adapter
Accessory for the CTL503. Sold separately.
