CTL011 Blank PCBs (Pack of 10)
Blank PCBs for MOSFET / BJT / diode testing with the CTL503
US$22.00
US: More stock soonUK: In stock
Overview

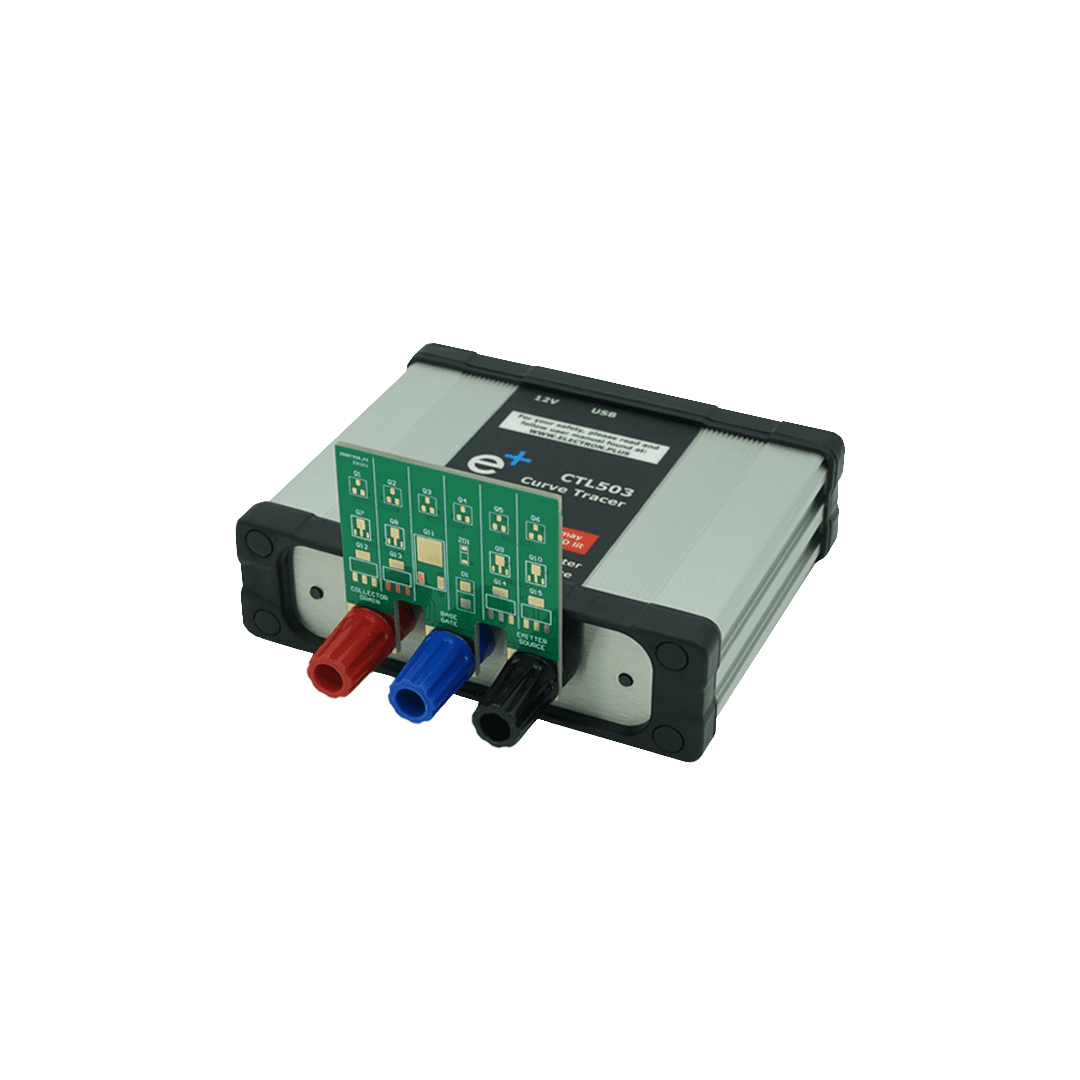

Pack of 10 blank circuit boards for testing semiconductor components (MOSFETs, BJTs, diodes) with the CTL503 Curve Tracer. Boards follow specification 502-011 issue 1 and are manufactured to UK standards. These consumable test boards enable systematic device characterisation and allow custom test setups for repeatable measurements.
Full specifications
Pack
Quantity
10
Specification
502-011 issue 1
Compliance
Certification
CE & UKCA
Ordering
SKU
CTL011
EAN
5065020202075
HS code
9030.20.1000
Scope of supply
| Item | Part no. | Qty |
|---|---|---|
| CTL011 Blank PCBs (Pack of 10) | CTL011 | 1 |
| CTL011 blank PCBs | - | 10 |
Documents
| Title | Version | Type | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| CTL011 Datasheet (502-011 issue 1) | issue 1 | Datasheet | EN | - | 123 KB |
Need this alongside your instrument?
Shipped from the UK with your order.
