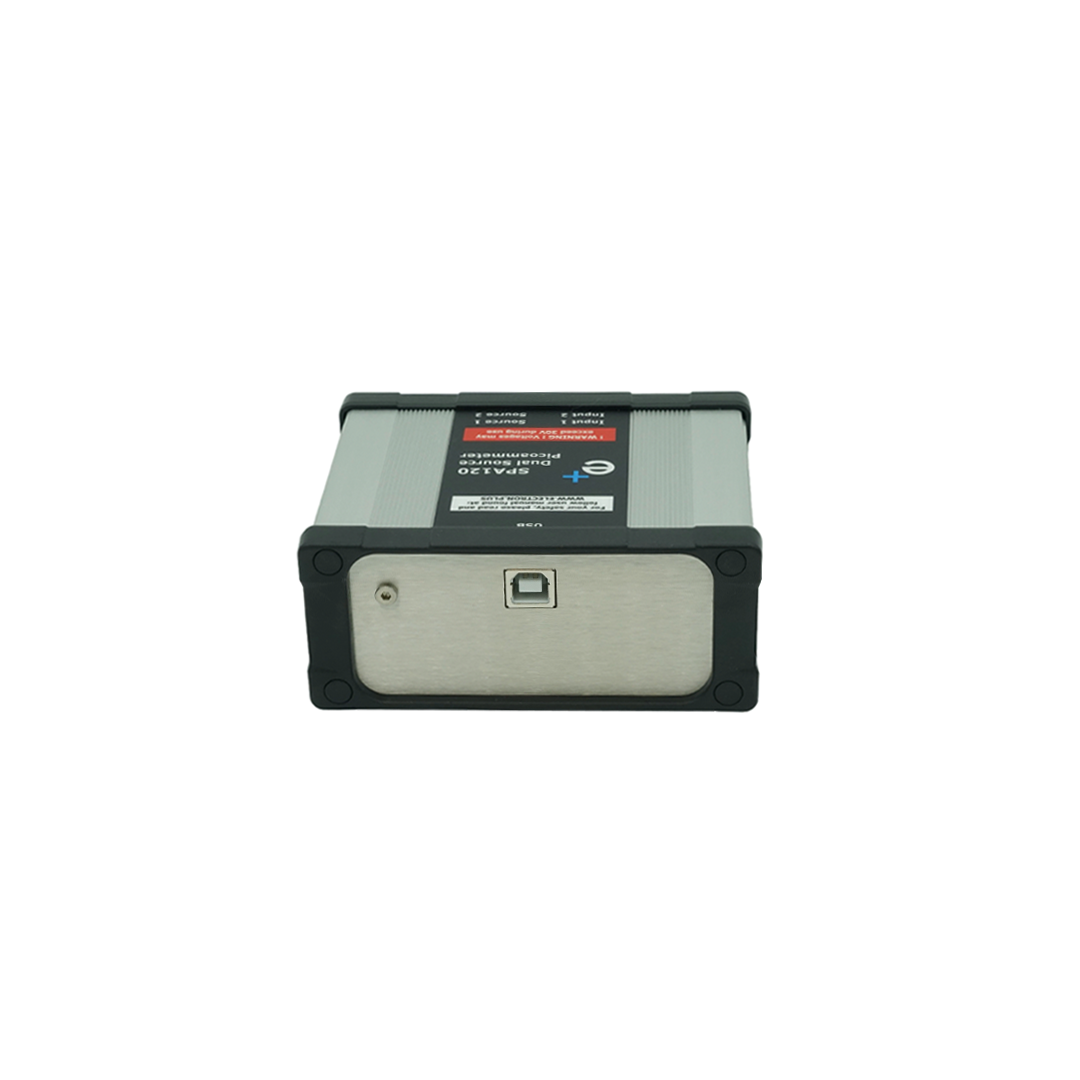

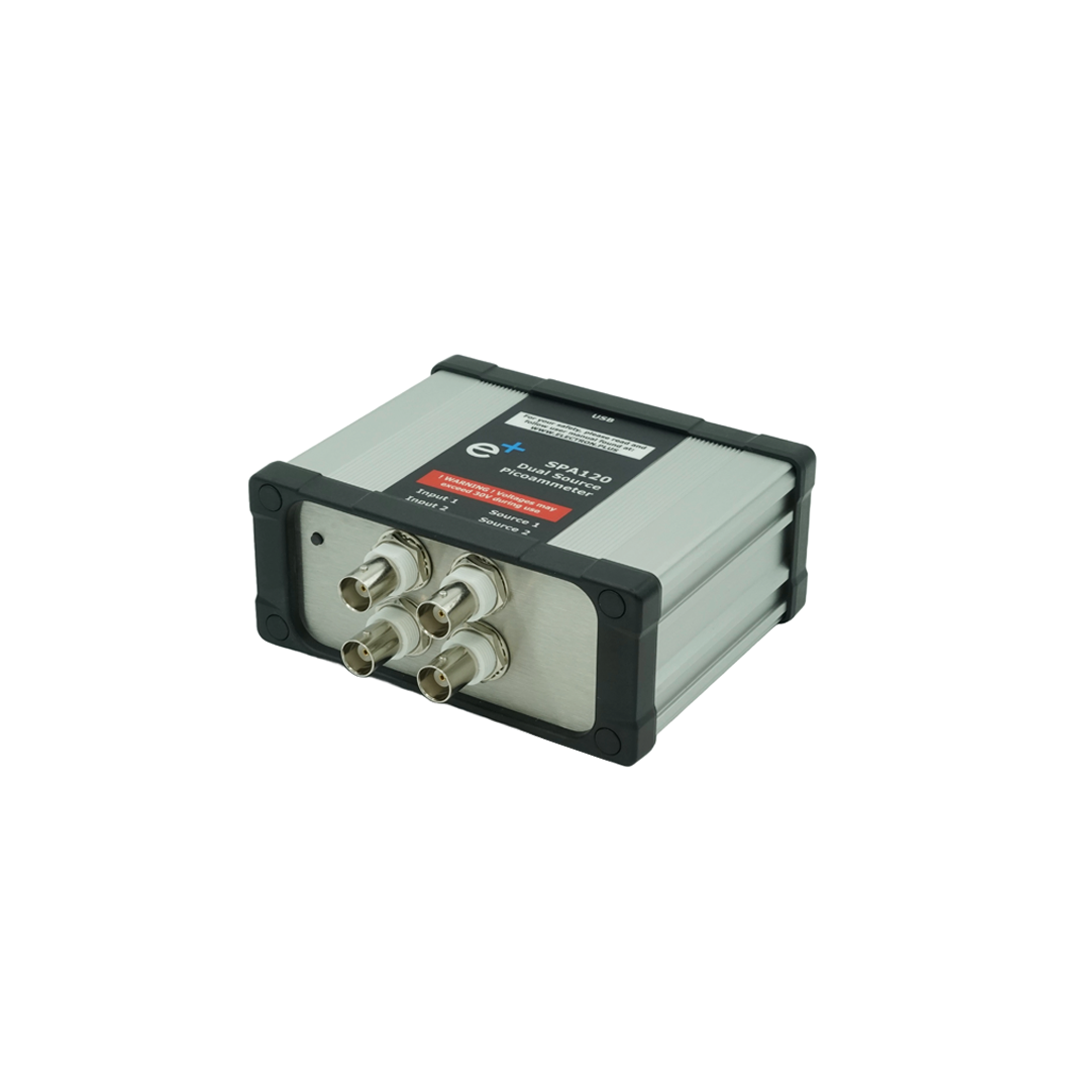

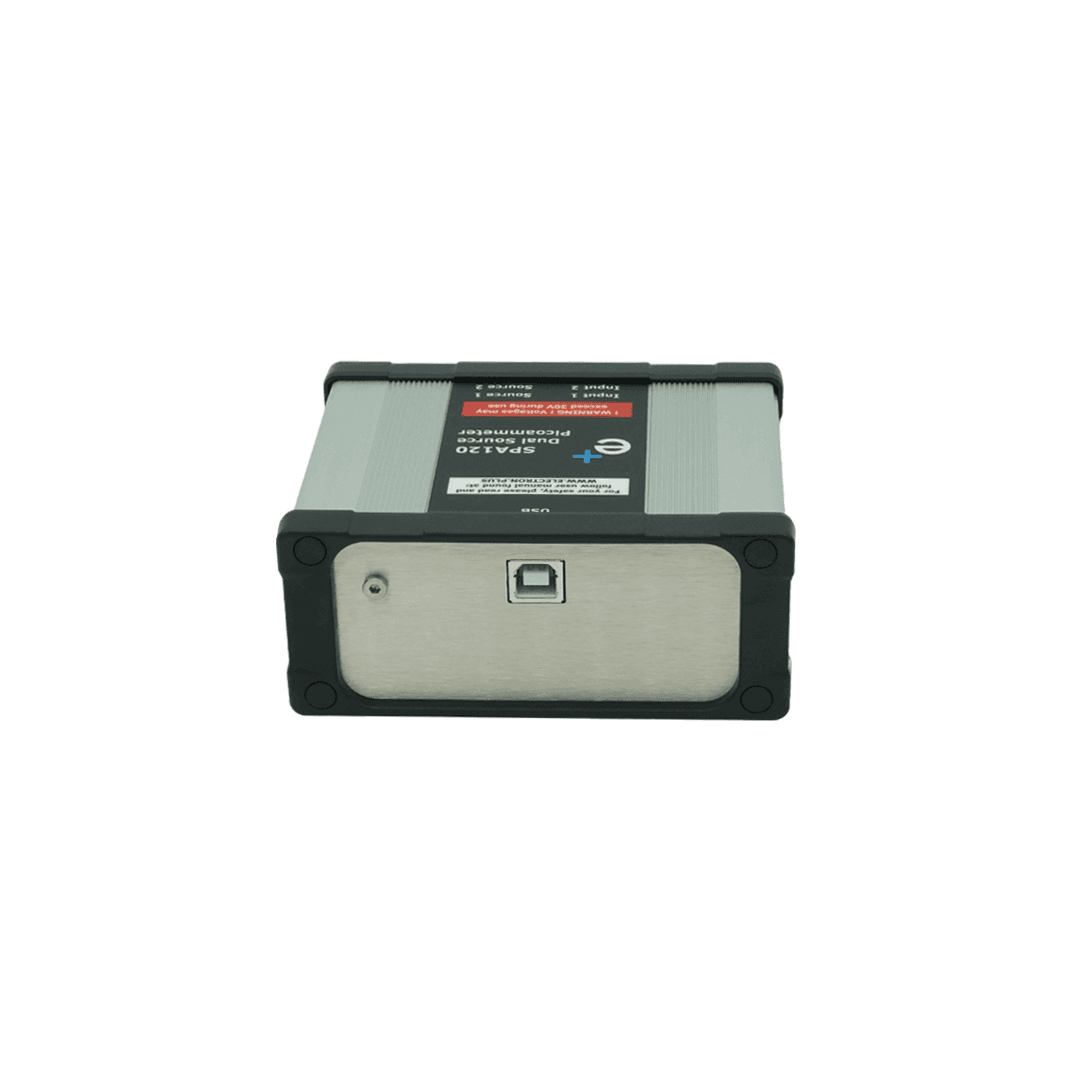

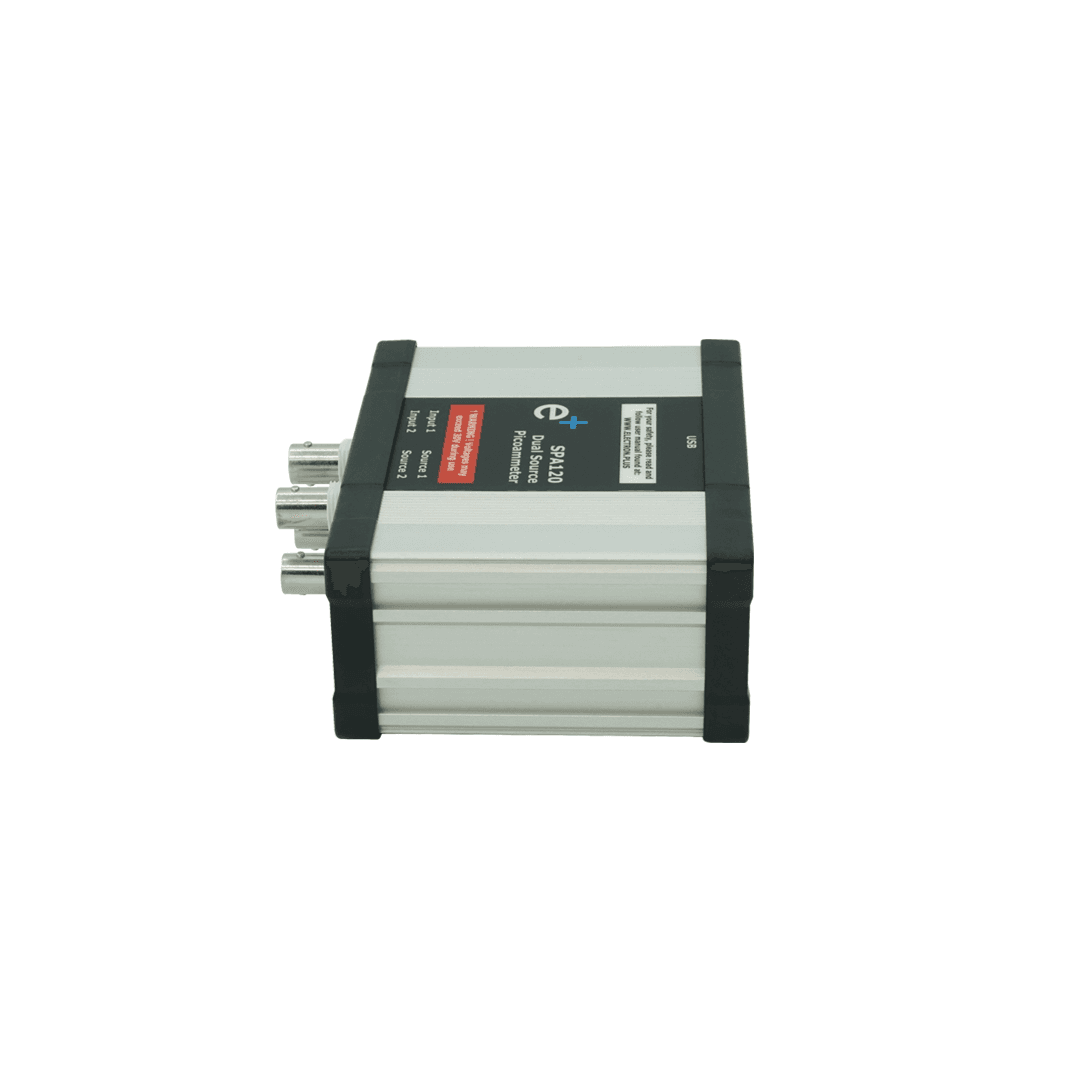

SPA120 Dual Source Picoammeter

Dual-channel USB source picoammeter. Two isolated channels, each 2 mA to 200 pA.

  • Current range
    ±2 mA to ±200 pA
  • Source (bias)
    up to ±80 V (series)
  • Channels
    2 (fully isolated)
  • Sample rate
    2 / 10 / 20 Hz sync'd
£449.00ex. VAT
£538.80 inc. VAT
UK: In stockUS: More stock soon
Request a quote

Overview

The SPA120 is a highly sensitive instrument combining sensitivity, accuracy, and stability for low-current measurement across two fully isolated channels. Designed for scientific and research applications including physics, materials science, and electron microscopy.

Features two synchronised, independent channels with series-linkable sources reaching ±80 V bias voltage. Connects via USB and runs with the free EPIC software for measurement graphing, data capture with timestamps, and stability monitoring.

Ideal for

Comparative, differential and matched-pair current measurement. Photodiode X/Y characterisation. Simultaneous source and detector readings.

Key features

  • Two fully isolated, independent channels, isolated from chassis
  • Eight current ranges per channel: 2 mA to 200 pA
  • Bias 0 V to +40 V (or −40 V) per channel; series-linkable to 80 V
  • Synchronised channels for X/Y measurement
  • Resistance measurement approximately 1 kΩ to 40 TΩ (R = V/I)
  • Shared sample rate 2 Hz / 10 Hz / 20 Hz; independent averaging per channel
  • USB Type B, bus-powered, ≤ 0.5 A; EPIC software included

Applications

Comparative and differential measurement

Record two devices under the same conditions, or two points in one circuit, on isolated channels. One channel may be used as a reference.

Matched-pair selection

Compare two devices simultaneously to select closely matched pairs.

Photodiode characterisation

Synchronised channels support X/Y photodiode measurement. Series-linked sources provide bias up to 80 V.

Electron microscopy

Measure source and detector currents simultaneously on two isolated channels.

Full specifications

Channels
Configuration
2 fully isolated, synchronised
Current input
Range
±2 mA to ±200 pA (8 ranges per channel)
Accuracy & resolution
per channel, same front end as the SPA100: ±0.1% / < 20 nA (±2 mA) to ±1.5% / < 2 fA (±200 pA), at 2 Hz
Resistance
Measurement
~1 kΩ to 40 TΩ (R = V/I), > ±0.5% accuracy (1 MΩ to 1 TΩ)
Output
Bias voltage
0 to ±40 V per channel (1 V increments, polarity-selectable); series-linkable to ±80 V
Output resistance
2.7 kΩ per channel
Sampling
Rate
2 Hz (18-bit), 10 Hz (16-bit) or 20 Hz (14-bit) - shared by both channels
Power
Input
USB Type B, bus-powered, ≤ 0.5 A
Compliance
Certification
CE/UKCA
Dimensions
Dimensions
112 mm (W) x 50 mm (H) x 107 mm (D)
Weight (net)
0.378 kg
Ordering
SKU
SPA120
EAN
5065020202136
HS code
9030.20.1000

Scope of supply

2 items
ItemPart no.Qty
SPA120 Dual Source PicoammeterSPA120-UNIT1
1.8 m USB cableMISC133B1

Downloads

2 downloads
Download
SPA datasheet and manual (PDF)Open →EPIC software (ZIP)Open →

SPA120 Dual Source Picoammeter

Supplied calibrated. EPIC software, drivers and subsequent updates are included.
