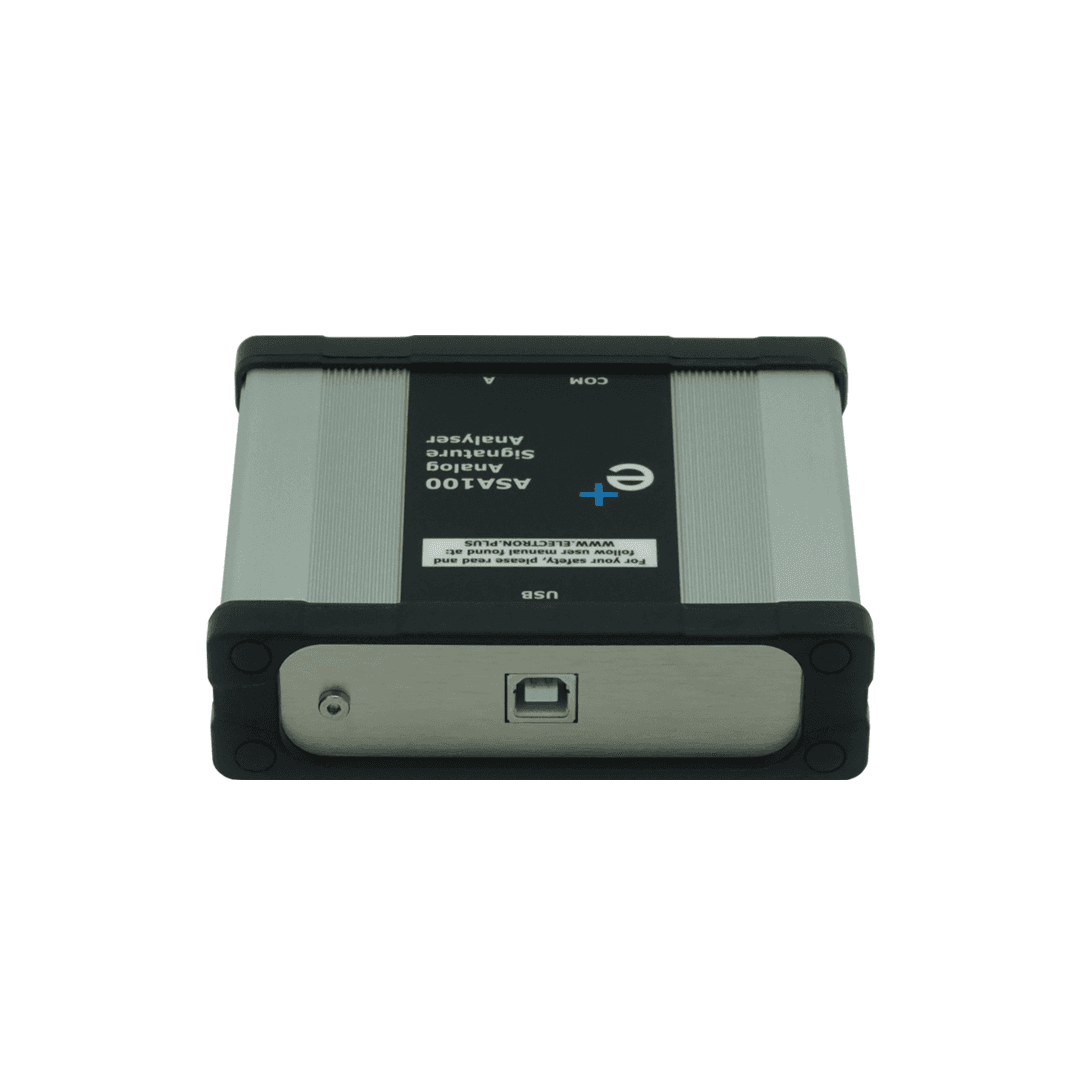

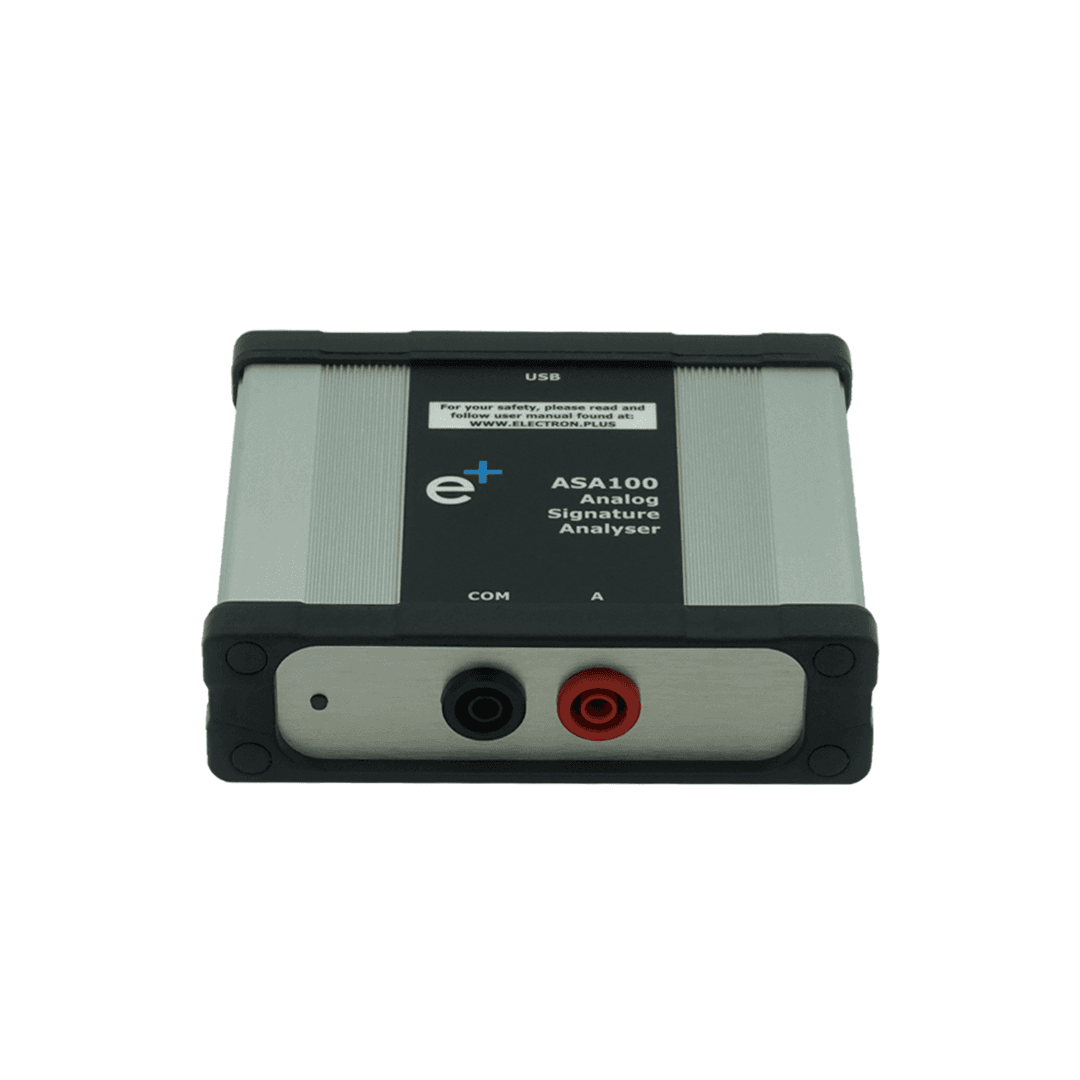

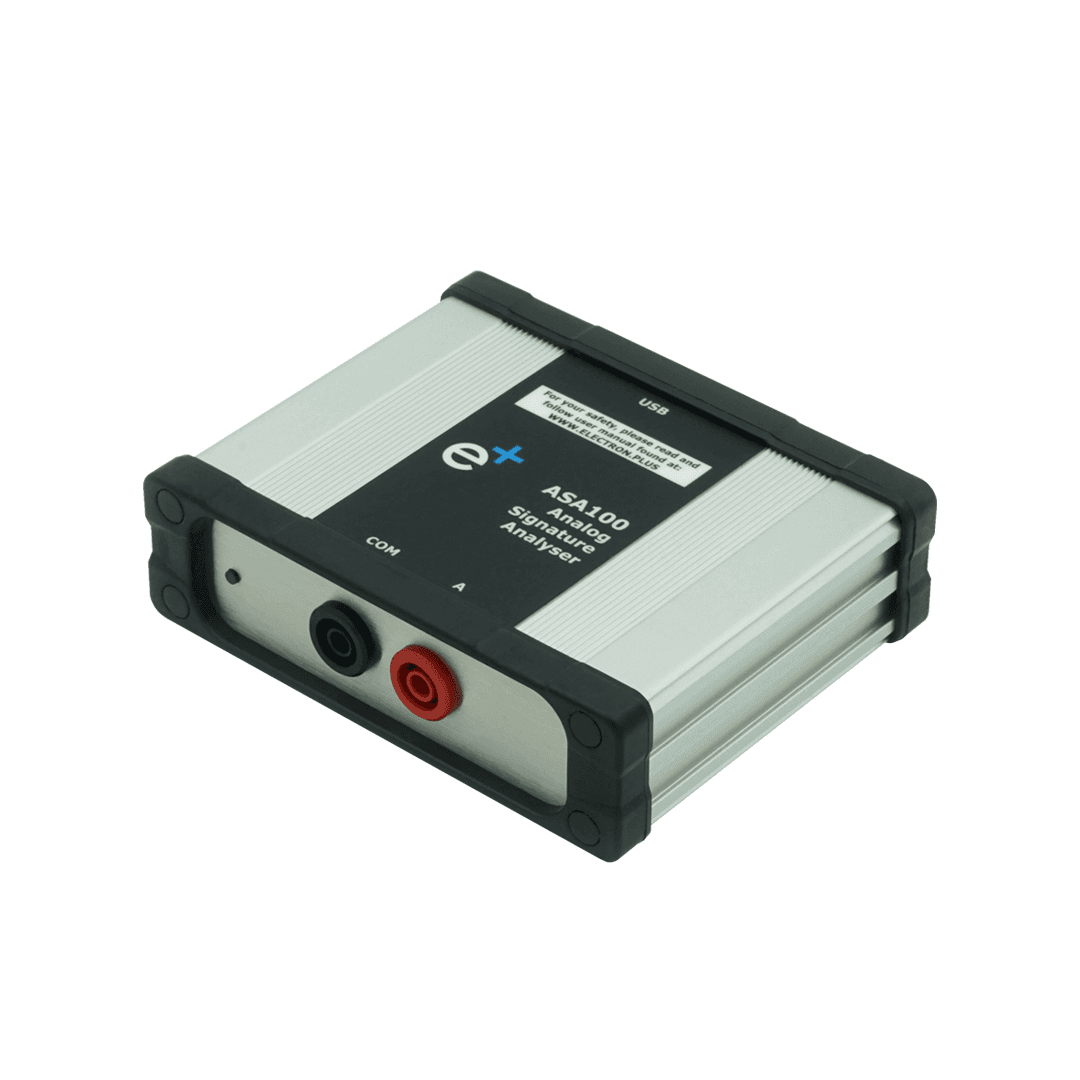

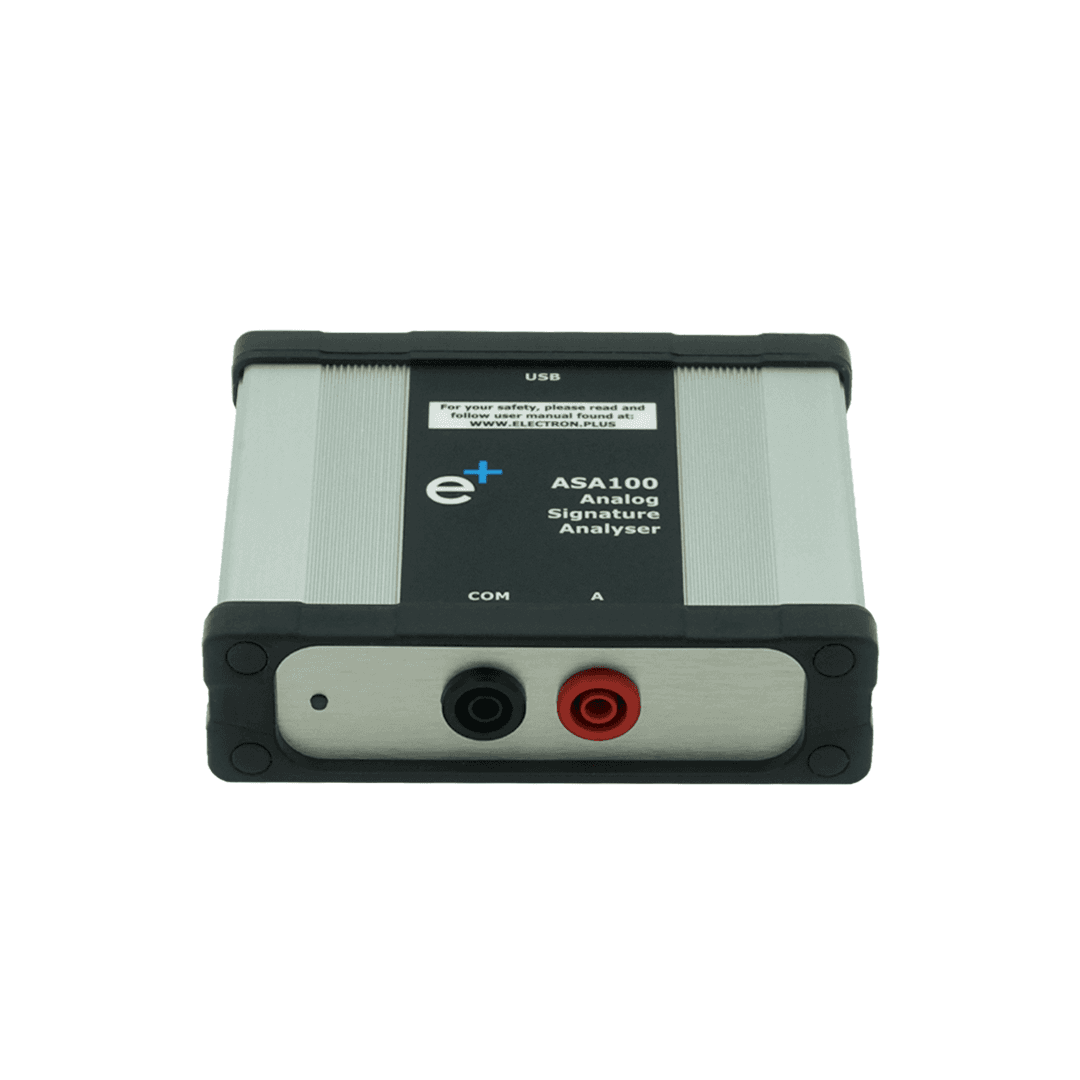

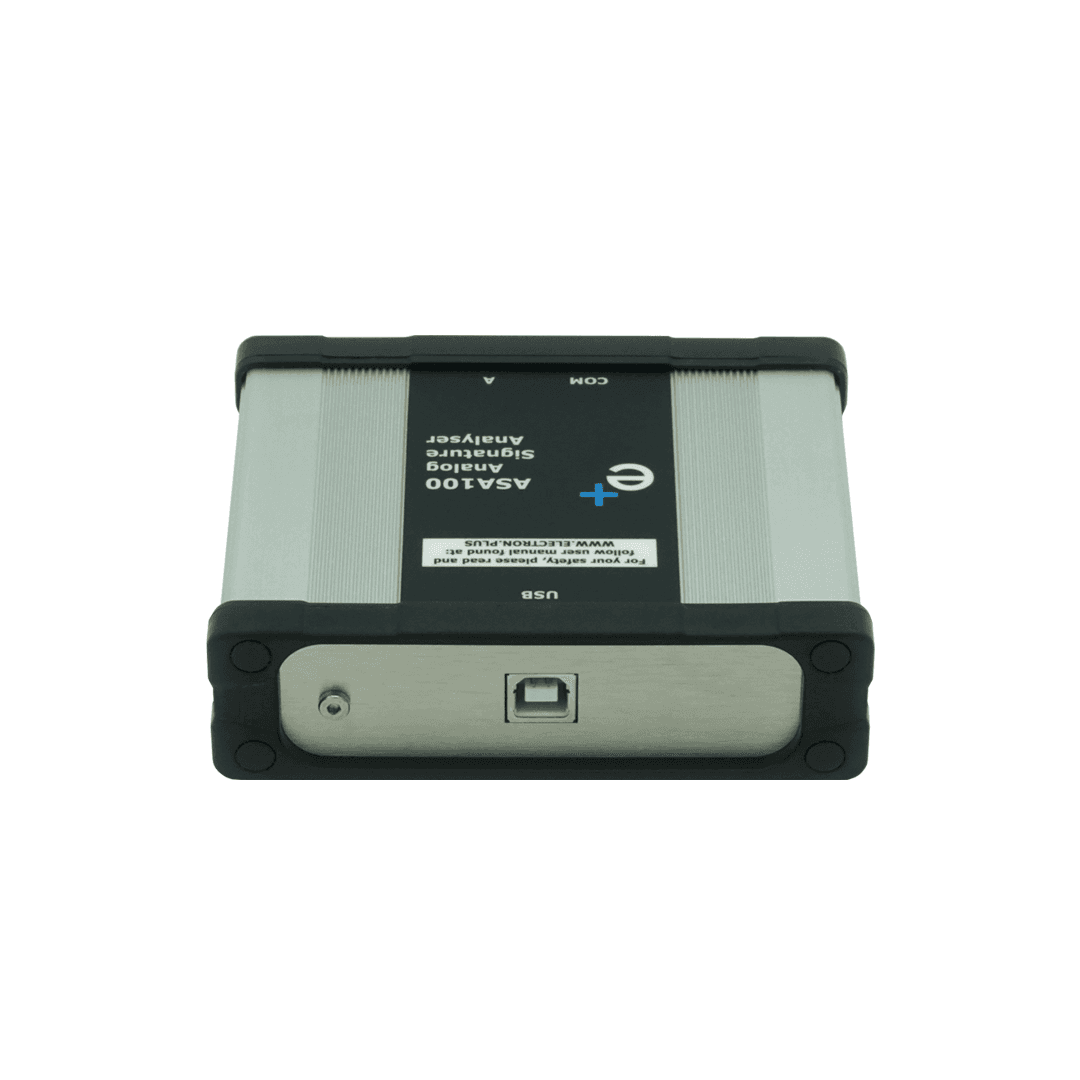

ASA100 Analog Signature Analyser
Our most popular and cost-efficient Analog Signature Analyser
- Output resistance100 Ω, 1 kΩ, 10 kΩ
- Output voltage0.2 to 10 Vpk
- Output frequency10 Hz to 1 kHz
- ConnectionUSB Type B
US$399.00
US: In stockUK: In stock
Overview
Unlock the power of 'power-off testing' with the ASA100, the entry-level model in our Analog Signature Analyser range. The ideal solution to inspect, diagnose, and fix printed circuit boards without energising them.
The ASA100 offers reliable signature analysis for component testing and board diagnostics over USB, in a professional aluminium-extrusion enclosure with stainless-steel panels.
Full specifications
Output
Resistance
100 Ω, 1 kΩ, 10 kΩ (3 ranges)
Voltage
0.2 to 10 Vpk (11 ranges)
Frequency
10 Hz to 1 kHz (7 ranges)
Power
Input
USB Type B, bus-powered, ≤ 0.5 A
Connectivity
Data
USB Type B
Physical
Enclosure
Aluminium extrusion, 1 mm stainless-steel panels
Compliance
Certification
CE & UKCA
Dimensions
Dimensions
112 mm (W) x 36 mm (H) x 90 mm (D)
Weight (net)
0.250 kg
Ordering
SKU
ASA100
EAN
5065020202006
HS code
9030.20.1000
Software
One free app drives the whole range

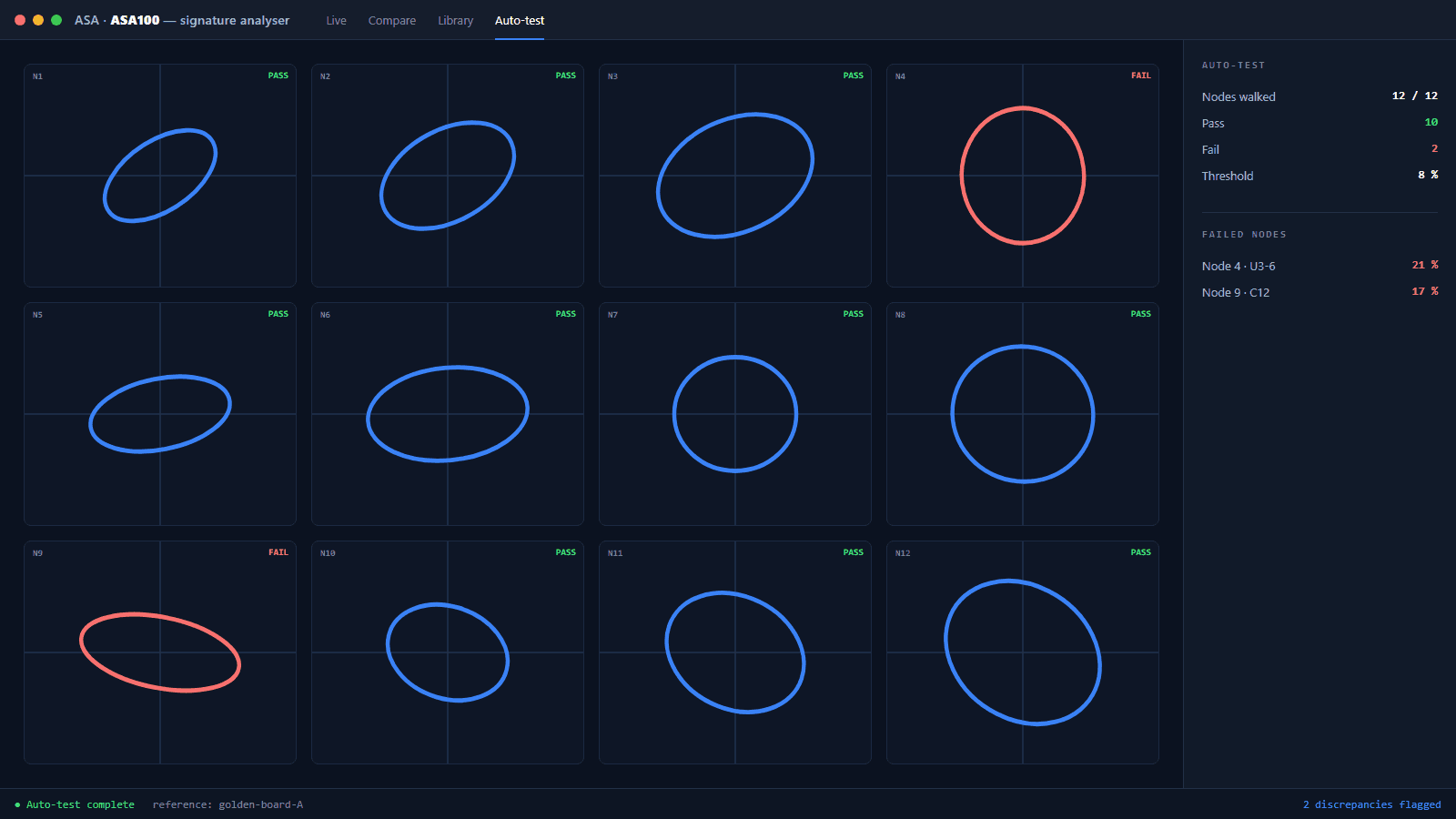

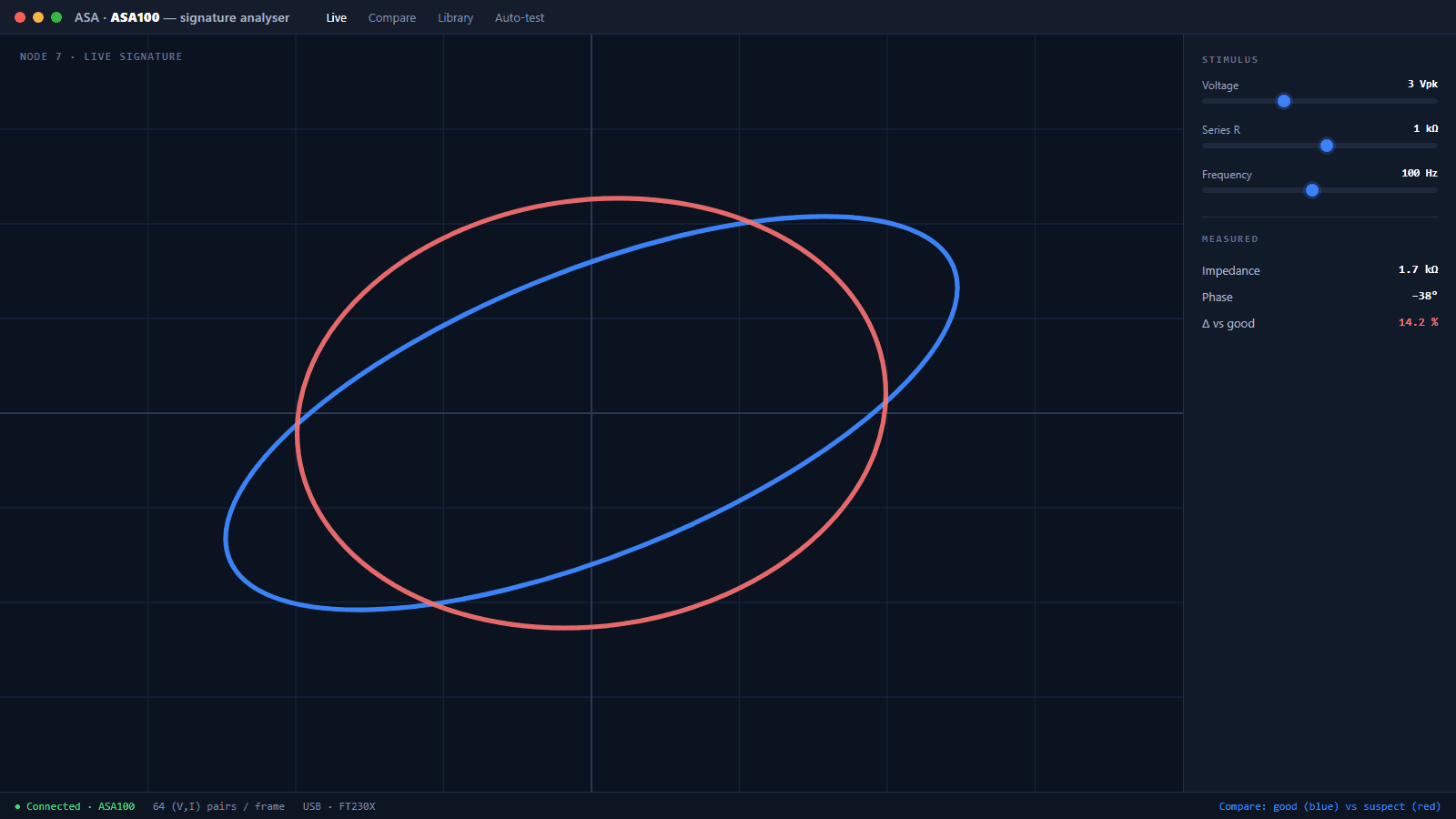

Free for the life of the instrument — no licence, no per-seat dongle. Plot live signatures, compare a known-good board against the one under test, and export every trace.
Scope of supply
| Item | Part no. | Qty |
|---|---|---|
| ASA100 Analog Signature Analyser | ASA100 | 1 |
| 1.8 m USB cable | - | 1 |
Software
| Title | Version | OS | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| ASA Software (V26.602) | V26.602 | Windows | EN | - | 65 MB | ZIP |
Documents
| Title | Version | Type | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| User Manual | 2024-06-13 | Manual | EN | - | 37 MB |
Ready to find that fault faster?
Ships calibrated with free software, drivers and lifetime updates.
