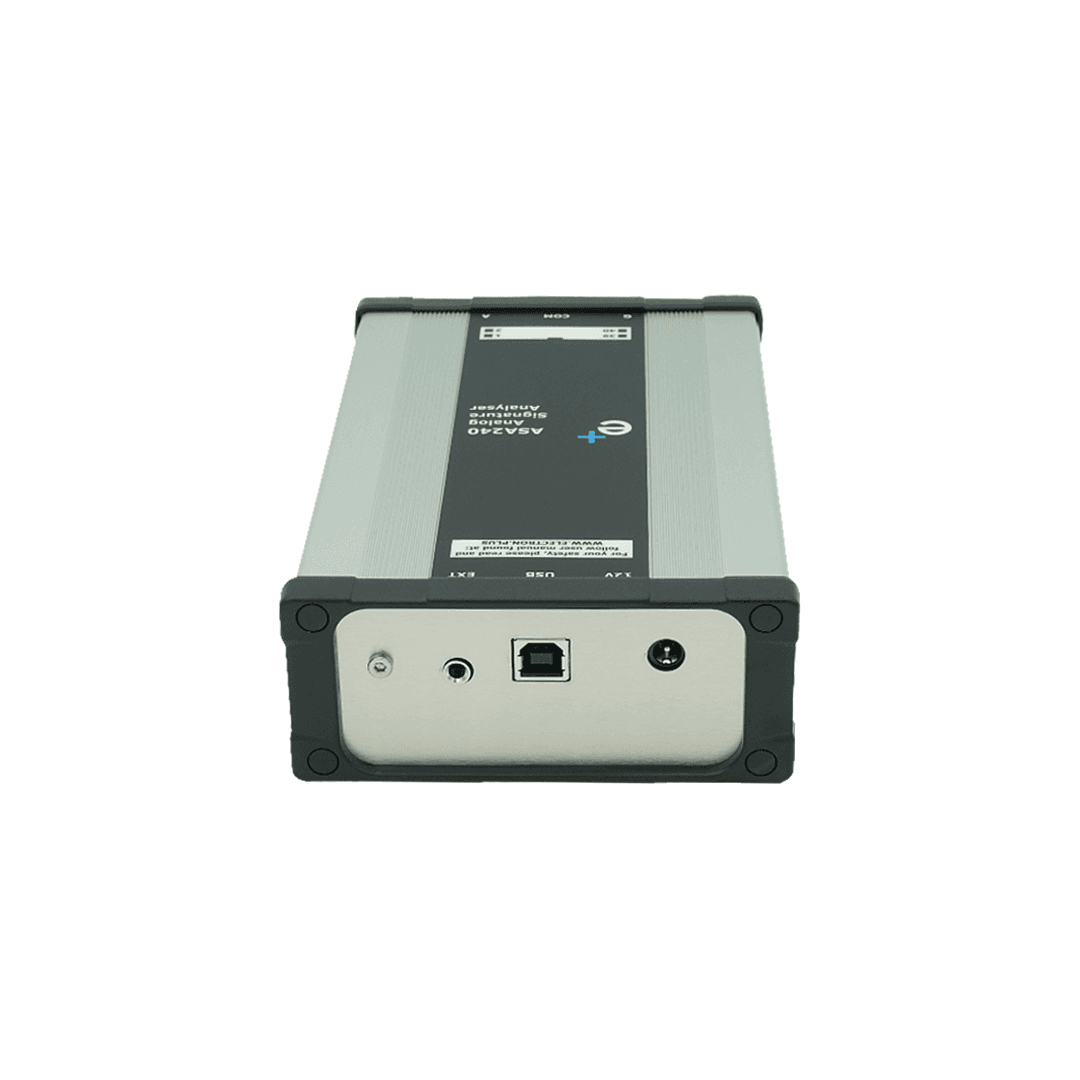

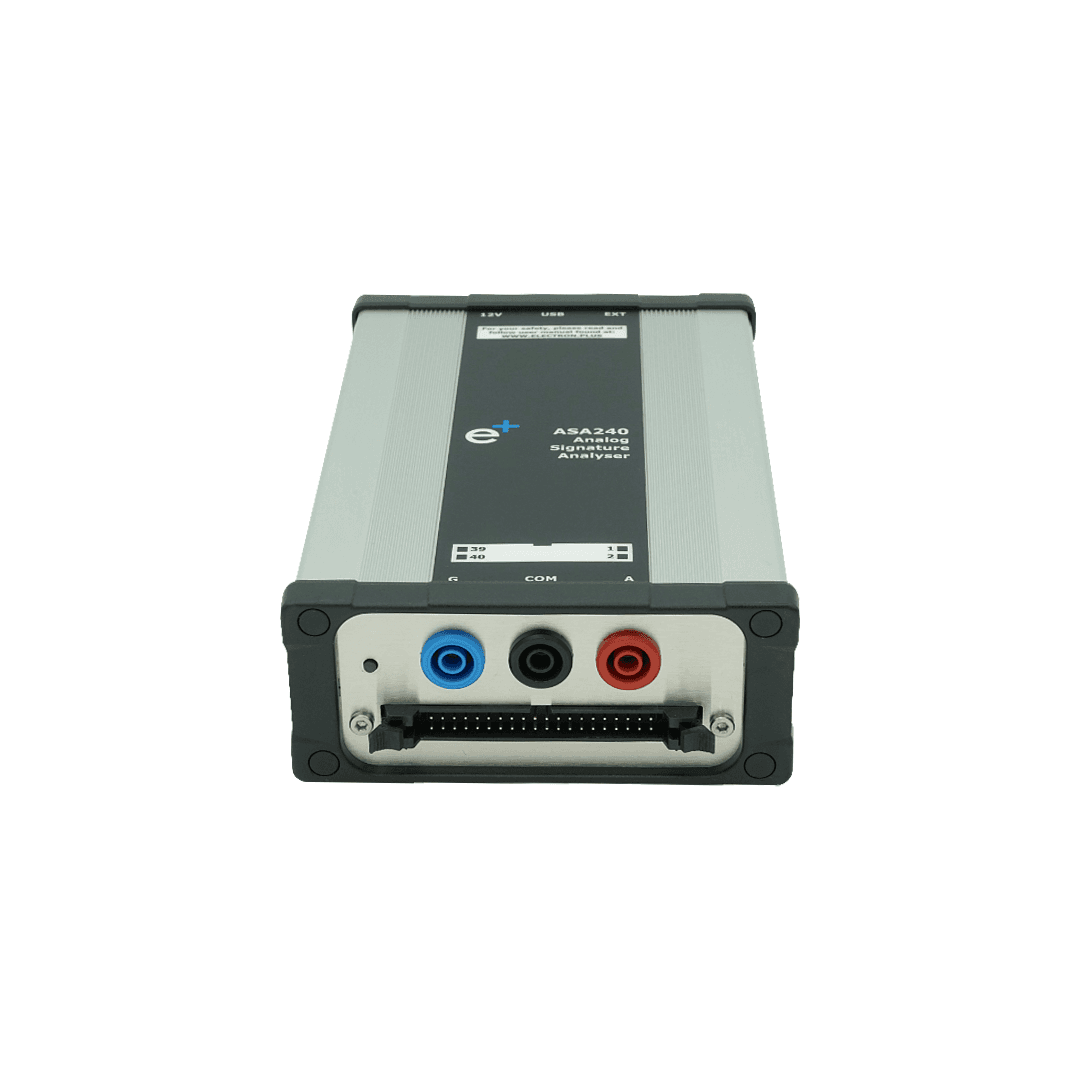

ASA240 Analog Signature Analyser
Our most flexible Analog Signature Analyser with a built-in 40x2 switching matrix.
- Output voltage0.2 to 10 Vpk
- Output resistance50 Ω to 10 kΩ
- Switching matrix40 × 2
- Gate / bias±10 V adjustable
US$1,469.00
US: More stock soonUK: In stock
Overview
The ASA240 is the flagship model in our Analog Signature Analyser line. It incorporates everything the ASA200 offers, plus a 40×2 switching multiplexer for accelerated manufacturing-test workflows.
The multiplexer can be configured via software and paired with adaptors (DIP, SO) or 'bed-of-nails' systems for accelerated board testing in manufacturing environments.
Full specifications
Output
Voltage
0.2–10 Vpk (10 settings)
Frequency
10 Hz–1 kHz (7 settings)
Resistance
50 Ω–10 kΩ (8 settings)
Gate / bias
±10 V adjustable, 100 Ω impedance; 6 modes: DC, hard/soft square wave, pulse, off (Hi-Z / 0 V)
Switching
Matrix
40 × 2
External
Footswitch
Two inputs (function A and B), 3.5 mm TRS
Power
Input
External 12 V 4 A PSU (48 W), provided; USB for data
Connectors
Terminals
4 mm shrouded, 19 mm pitch
Compliance
Certification
CE & UKCA
Dimensions
Dimensions
112 mm (W) x 50 mm (H) x 175 mm (D)
Ordering
SKU
ASA240
EAN
5065020202037
HS code
9030.20.1000
Scope of supply
| Item | Part no. | Qty |
|---|---|---|
| ASA240 Analog Signature Analyser | ASA240 | 1 |
| Mains PSU with UK, USA, EU and AU/NZ adapters | - | 1 |
| 1.8 m USB cable | - | 1 |
Software
| Title | Version | OS | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| ASA Software (V26.602) | V26.602 | Windows | EN | - | 65 MB | ZIP |
Documents
| Title | Version | Type | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| User Manual | 2024-06-13 | Manual | EN | - | 37 MB |
