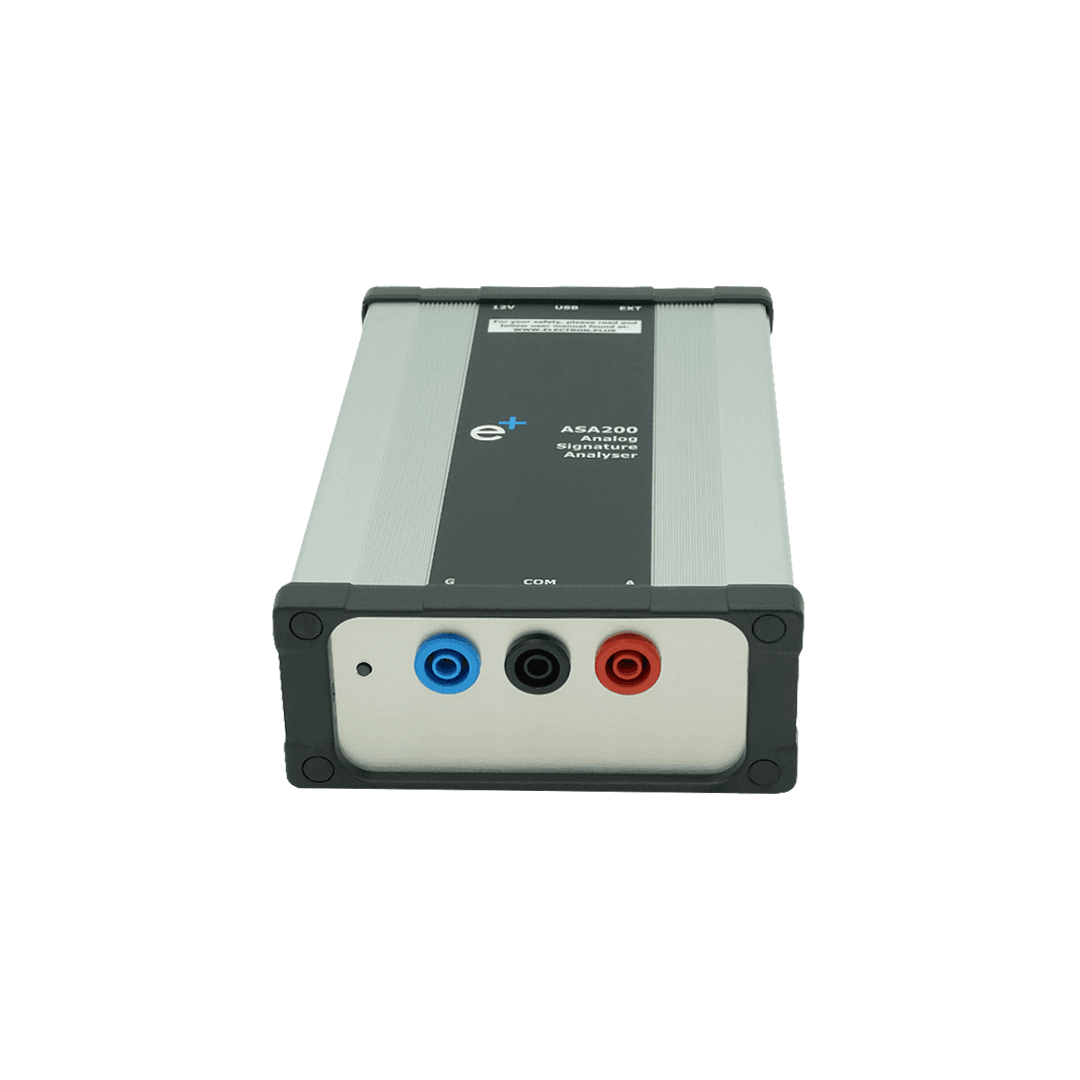

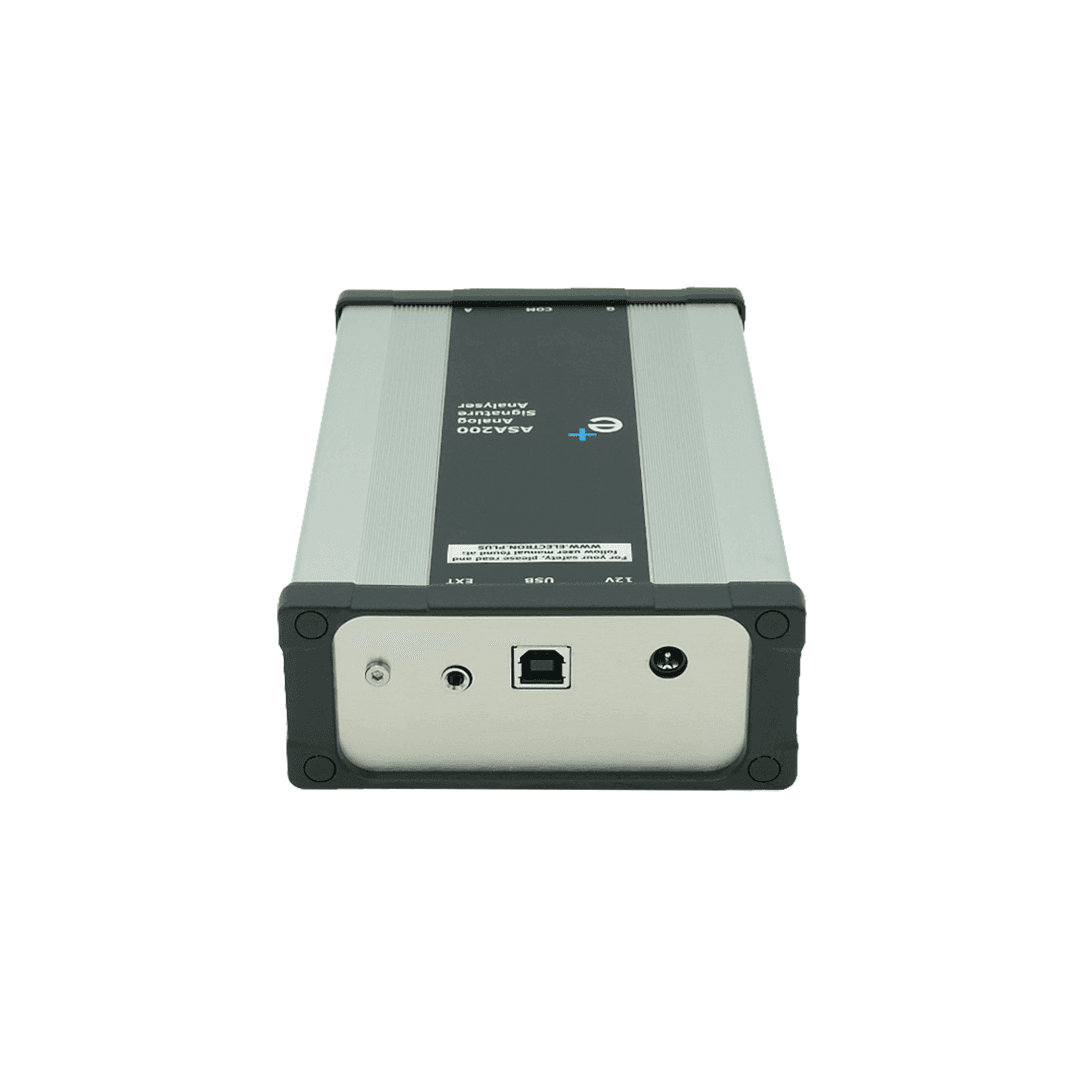

ASA200 Analog Signature Analyser
Eight resistance ranges plus a built-in gate/bias generator.
- Output voltage0.2 to 10 Vpk
- Output frequency10 Hz to 1 kHz
- Output resistance50 Ω to 10 kΩ
- Gate / bias±10 V adjustable
US$869.00
US: More stock soonUK: In stock
Overview
The ASA200 is the base, single-channel model in our Analog Signature Analyser line. It builds on the ASA100 foundation with enhanced capabilities for testing active components - SCRs, opto-couplers, small relays, and TRIACs.
Features two footpedal inputs (function A and function B) for accelerated component-testing workflows. Housed in a professional aluminium-extrusion enclosure with stainless-steel panels.
Full specifications
Output
Voltage
0.2–10 Vpk (10 settings)
Frequency
10 Hz–1 kHz (7 settings)
Resistance
50 Ω–10 kΩ (8 settings)
Gate / bias
±10 V adjustable, 100 Ω impedance; 6 modes: DC, hard/soft square wave, pulse, off (Hi-Z / 0 V)
External
Footswitch
Two inputs (function A and B), 3.5 mm TRS
Power
Input
External 12 V 4 A PSU (48 W), provided; USB for data
Connectors
Terminals
4 mm shrouded, 19 mm pitch
Compliance
Certification
CE & UKCA
Dimensions
Dimensions
112 mm (W) x 50 mm (H) x 170 mm (D)
Ordering
SKU
ASA200
EAN
5065020202020
HS code
9030.20.1000
Scope of supply
| Item | Part no. | Qty |
|---|---|---|
| ASA200 Analog Signature Analyser | ASA200 | 1 |
| Mains PSU with UK, USA, EU and AU/NZ adapters | - | 1 |
| 1.8 m USB cable | - | 1 |
Software
| Title | Version | OS | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| ASA Software (V26.602) | V26.602 | Windows | EN | - | 65 MB | ZIP |
Documents
| Title | Version | Type | Lang | Released | Size | Format |
|---|---|---|---|---|---|---|
| User Manual | 2024-06-13 | Manual | EN | - | 37 MB |
Ready to find that fault faster?
Ships calibrated with free software, drivers and lifetime updates.
